DP83848TSQ/NOPB - Texas Instruments

Description: Texas Instruments DP83848TSQ/NOPB, IEEE 802.3u Physical Layer Transceiver, 3.3 V, 40-Pin LLP

Download DP83848TSQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

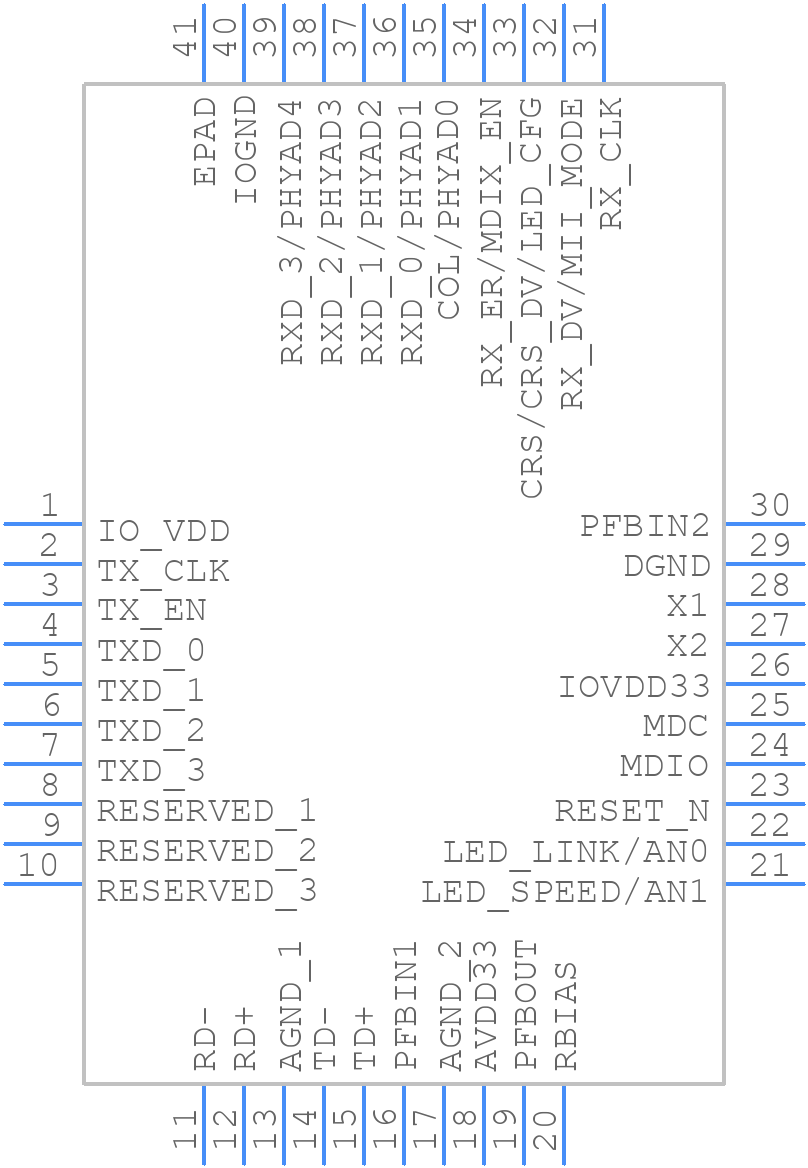

DP83848TSQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848TSQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA (S-PQFP-N40)-1
click to zoom
3D Models
DP83848TSQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTA (S-PQFP-N40)-1
click to zoom

DP83848TSQ/NOPB Details

  • Manufacturer Part Number:

    DP83848TSQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83848TSQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Ethernet PHY Layout Guidelines' application note (SLAA503) for optimal performance.
  • The DP83848TSQ/NOPB can be configured using the SPI or MII management interfaces. Refer to the 'DP83848TSQ/NOPB Ethernet PHY Transceiver' datasheet and the 'Ethernet PHY Configuration and Register Programming' application note (SLAA504) for configuration details.
  • The DP83848TSQ/NOPB has a typical power consumption of 360 mW in 1000BASE-T mode and 240 mW in 10/100BASE-TX mode. The junction temperature range is -40°C to 125°C. Refer to the datasheet for more detailed power and thermal characteristics.
  • Texas Instruments provides a troubleshooting guide in the 'DP83848TSQ/NOPB Ethernet PHY Transceiver' datasheet, as well as application notes such as 'Ethernet PHY Troubleshooting Guide' (SLAA505) and 'Ethernet PHY Debugging Techniques' (SLAA506).
  • Yes, the DP83848TSQ/NOPB is rated for industrial temperature ranges (-40°C to 85°C) and is suitable for use in industrial Ethernet applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83848TSQ/NOPB Overview

Use the download button to access the DP83848TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
