DP83849IDVSX/NOPB - Texas Instruments

Description: PHYTER DUAL Industrial Temp with Fiber Support (FX), Dual Port 10/100 Mb/s Eth Phys Layer Transc

Download DP83849IDVSX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DP83849IDVSX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

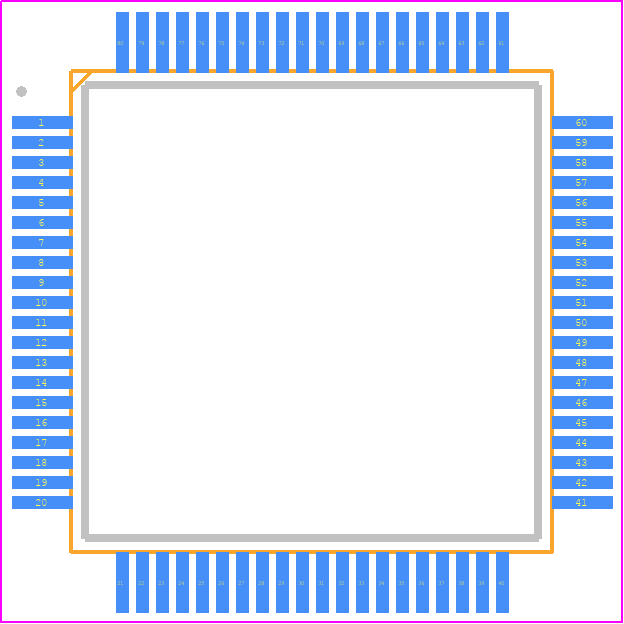

DP83849IDVSX/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - Thin Quad Flat Package (TQFP)80
click to zoom
3D Models
DP83849IDVSX/NOPB - Texas Instruments - 3D model - Quad Flat Packages - Thin Quad Flat Package (TQFP)80
click to zoom

DP83849IDVSX/NOPB Details

  • Manufacturer Part Number:

    DP83849IDVSX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e4

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

DP83849IDVSX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Ethernet PHY Layout Guidelines' application note (SLAA503) for optimal performance.
  • The DP83849IDVSX/NOPB can be configured using the SPI or MII management interfaces. Refer to the datasheet and the 'DP83849 Ethernet PHY Configuration and Register Programming' application note (SLAU522) for more information.
  • The power-up sequence involves applying power to the device, followed by a reset, and then configuring the device using the SPI or MII interface. The power-down sequence involves disabling the transmitter, followed by a reset, and then removing power from the device. Refer to the datasheet for more information.
  • Use the built-in diagnostic features such as the BIST (Built-In Self-Test) and the loopback mode to troubleshoot issues. Also, refer to the 'DP83849 Troubleshooting Guide' application note (SLAU523) for more information.
  • The DP83849IDVSX/NOPB has a maximum junction temperature of 150°C. Ensure good thermal design and heat dissipation to prevent overheating. Refer to the datasheet for thermal characteristics and guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83849IDVSX/NOPB Overview

Use the download button to access the DP83849IDVSX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
