DP83869HMRGZT - Texas Instruments

Description: Extended temperature, high-immunity gigabit Ethernet PHY transceiver with copper & fiber interface

Download DP83869HMRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

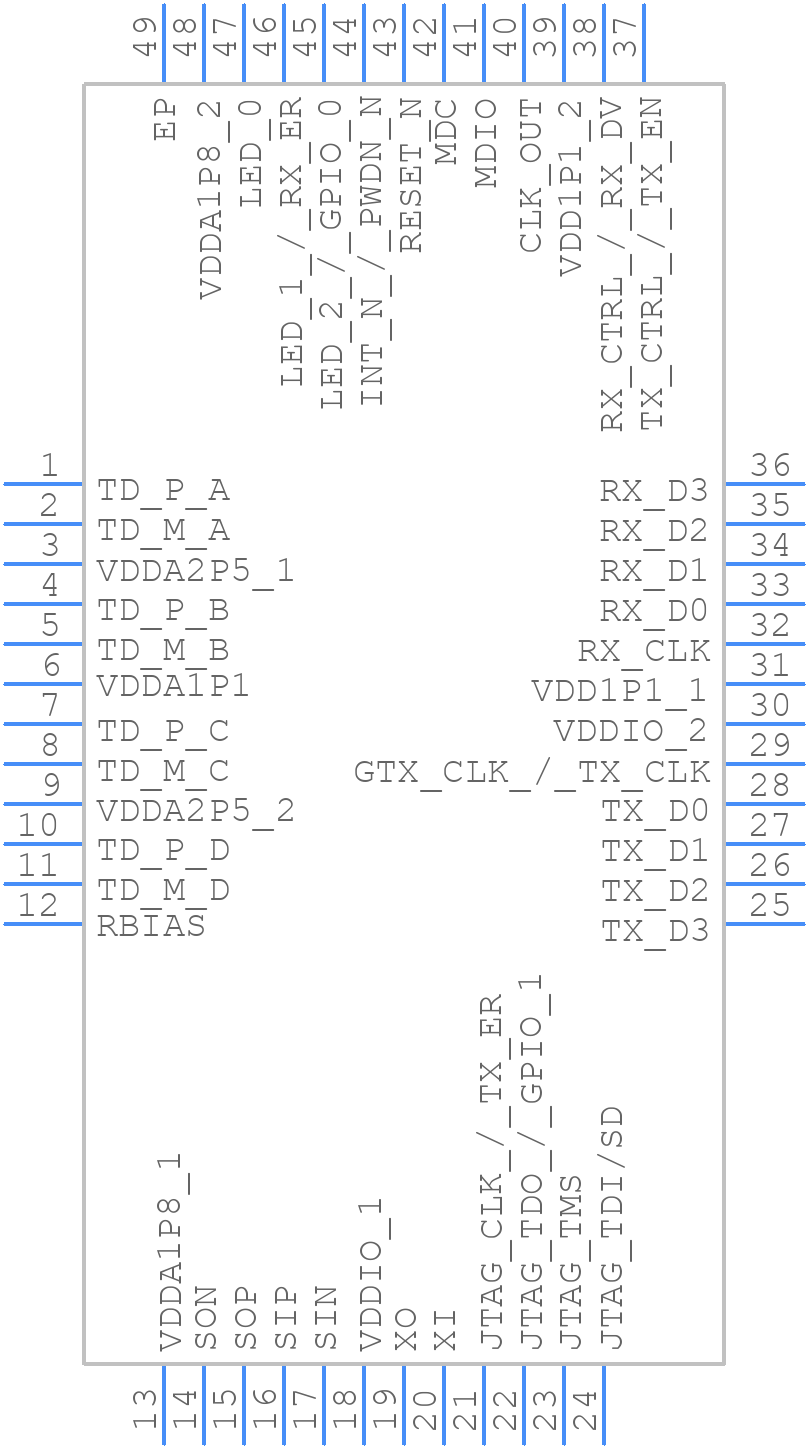

DP83869HMRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83869HMRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B_
click to zoom
3D Models
DP83869HMRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B_
click to zoom

DP83869HMRGZT Details

  • Manufacturer Part Number:

    DP83869HMRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83869HMRGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83869HMRGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83869HMRGZT can be configured using the TI's PHY Utility software, which provides a graphical user interface for configuring the device's registers and settings. The software is available for download on the TI website.
  • The DP83869HMRGZT supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and cable quality.
  • Texas Instruments provides a troubleshooting guide for the DP83869HMRGZT, which includes steps for identifying and resolving common issues such as link faults, packet loss, and PHY configuration errors.
  • Yes, the DP83869HMRGZT is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83869HMRGZT Overview

Use the download button to access the DP83869HMRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces
