DP83TC811RWRNDTQ1 - Texas Instruments

Description: Low-power 100BASE-T1 automotive PHYTER™ Ethernet physical layer transceiver

Download DP83TC811RWRNDTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

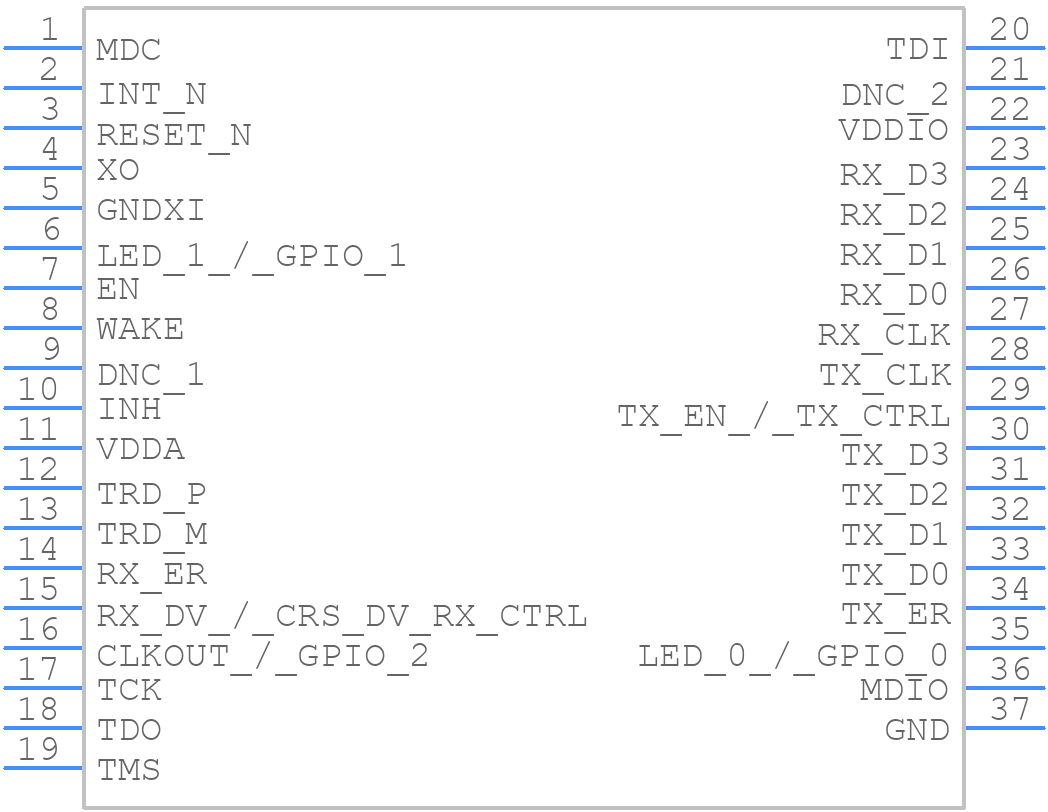

DP83TC811RWRNDTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83TC811RWRNDTQ1 - Texas Instruments PCB footprint - Other - Other - RND0036A
click to zoom
3D Models
DP83TC811RWRNDTQ1 - Texas Instruments - 3D model - Other - RND0036A
click to zoom

DP83TC811RWRNDTQ1 Details

  • Manufacturer Part Number:

    DP83TC811RWRNDTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83TC811RWRNDTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'PCB Layout Guidelines for DP83TC811' (SLVAUH7) for optimal performance.
  • Use the built-in diagnostic features of the DP83TC811RWRNDTQ1, such as the Error Detection and Correction (EDC) mechanism, and monitor the device's status registers. Additionally, use tools like packet sniffers and logic analyzers to debug the issue.
  • The maximum cable length supported by the DP83TC811RWRNDTQ1 is 100 meters, as per the IEEE 802.3 standard for Ethernet over twisted pair cables.
  • Yes, the DP83TC811RWRNDTQ1 is rated for industrial temperature range (-40°C to 85°C) operation, making it suitable for use in industrial applications.
  • Follow the guidelines in the TI application note 'EMC Design Considerations for the DP83TC811' (SLVAUH6) to ensure EMC compliance with the DP83TC811RWRNDTQ1.
