DP83TC811SWRNDRQ1 - Texas Instruments

Description: Ethernet ICs Automotive Grade 1, low-power 100BASE-T1 Ethernet PHY transceiver with xMII support & diagnostic too 36-VQFNP -40 to 125

Download DP83TC811SWRNDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

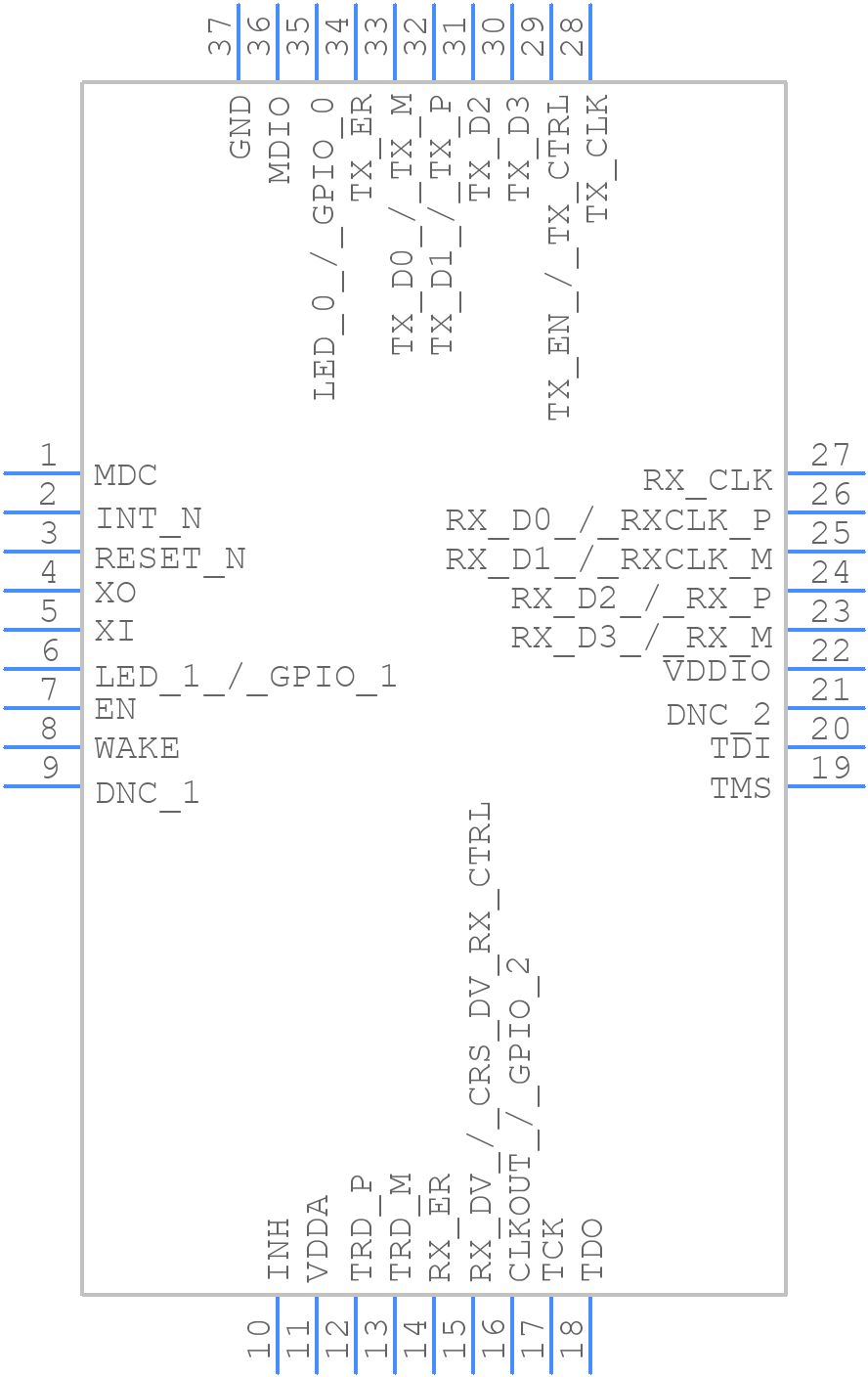

DP83TC811SWRNDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83TC811SWRNDRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RND0036A
click to zoom
3D Models
DP83TC811SWRNDRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RND0036A
click to zoom

DP83TC811SWRNDRQ1 Details

  • Manufacturer Part Number:

    DP83TC811SWRNDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-04-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83TC811SWRNDRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) for optimal performance.
  • The DP83TC811SWRNDRQ1 is a highly configurable device. Texas Instruments provides a software development kit (SDK) and a user guide that includes examples and documentation to help with configuration. Additionally, the TI E2E forum is a great resource for asking questions and getting feedback from experts and other users.
  • The DP83TC811SWRNDRQ1 has a maximum junction temperature of 150°C. It's essential to follow proper thermal design and layout guidelines to ensure the device operates within its thermal specifications. The thermal design should include a heat sink, thermal vias, and a thermal pad to dissipate heat effectively.
  • Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, the TI E2E forum is a great resource for asking questions and getting feedback from experts and other users. It's also recommended to use the TI's debugging tools, such as the TI USB3.0 Debug Tool, to help identify and resolve issues.
  • The DP83TC811SWRNDRQ1 has specific power sequencing requirements to ensure proper operation. The datasheet provides a detailed description of the power sequencing requirements, including the recommended power-up and power-down sequences.
