DP83TC811SWRNDTQ1 - Texas Instruments

Description: Automotive Grade 1, low-power 100BASE-T1 Ethernet PHY transceiver with xMII support & diagnostic too

Download DP83TC811SWRNDTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

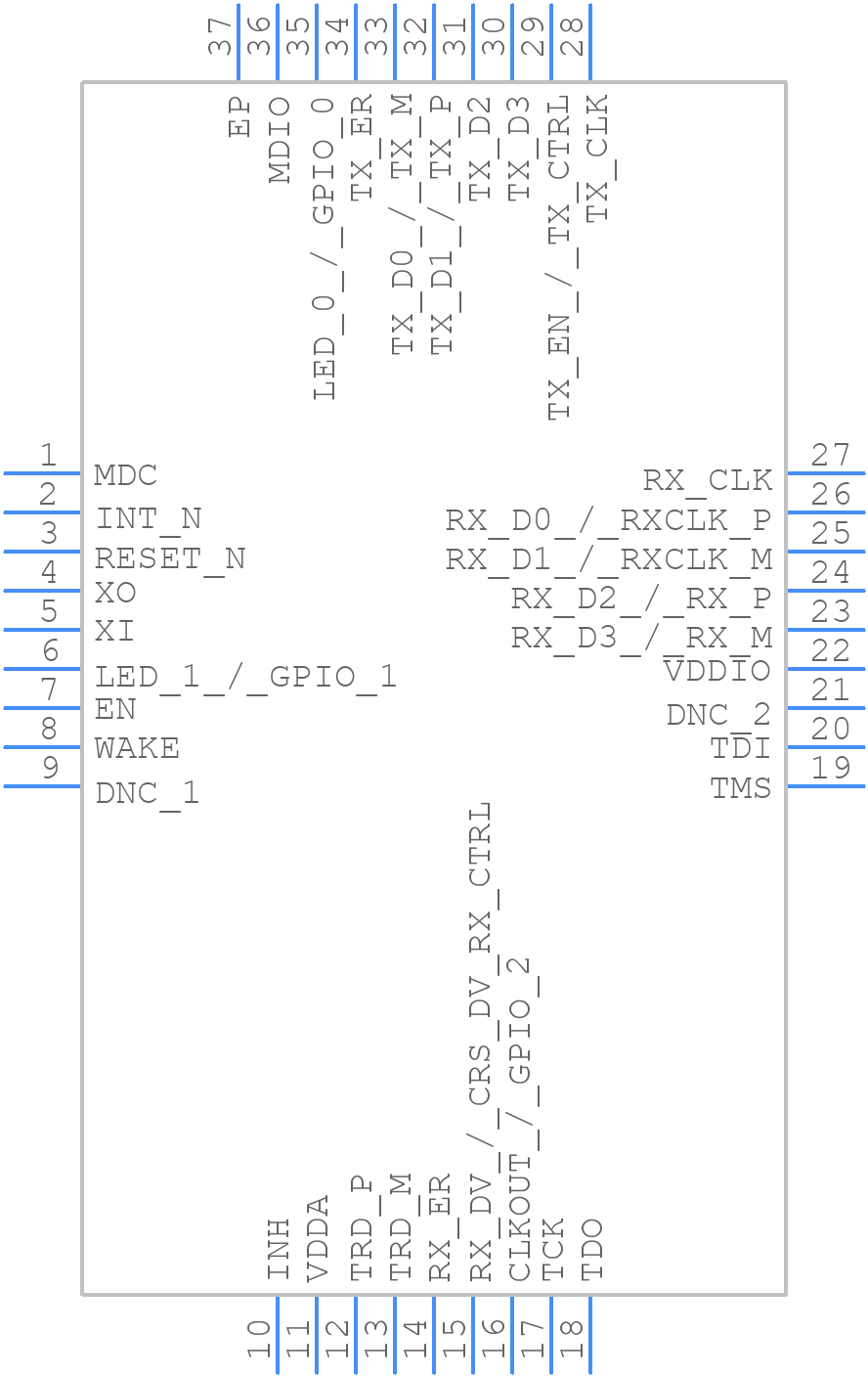

Symbol
DP83TC811SWRNDTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83TC811SWRNDTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DP83TC811SWRNDTQ1
click to zoom
3D Models
DP83TC811SWRNDTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - DP83TC811SWRNDTQ1
click to zoom

DP83TC811SWRNDTQ1 Details

  • Manufacturer Part Number:

    DP83TC811SWRNDTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-05-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83TC811SWRNDTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'PCB Layout Guidelines for TI Ethernet PHYs' (SLAA701) for optimal performance.
  • The DP83TC811SWRNDTQ1 can be configured using the Serial Management Interface (SMI) or the Management Data Input/Output (MDIO) interface. Refer to the datasheet and the TI application note 'DP83TC811 Ethernet PHY Configuration and Register Programming' (SLAU575) for configuration details.
  • The DP83TC811SWRNDTQ1 has a maximum junction temperature of 125°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the datasheet for thermal characteristics and guidelines.
  • Use the built-in diagnostic features such as the PHY status registers and the loopback mode to troubleshoot issues. Also, refer to the TI application note 'Troubleshooting Ethernet PHY Issues' (SLAA702) for common issues and solutions.
  • Yes, the DP83TC811SWRNDTQ1 is rated for industrial temperature ranges (-40°C to 85°C) and is suitable for industrial Ethernet applications.
