Texas Instruments provides a recommended PCB layout in the DP83TC812SRHATQ1 evaluation module (EVM) user's guide, which can be found on the TI website. The EVM user's guide includes a detailed layout guide, including Gerber files and PCB design files.
The DP83TC812SRHATQ1 can be configured using the TI PHY Utility software, which is a free tool provided by Texas Instruments. The software allows users to configure the device's registers, monitor its operation, and perform diagnostic tests.
The maximum cable length supported by the DP83TC812SRHATQ1 depends on the specific application and the type of cable used. However, according to the datasheet, the device supports cable lengths of up to 100 meters at 1 Gbps and up to 40 meters at 10 Gbps.
Texas Instruments provides a troubleshooting guide for the DP83TC812SRHATQ1, which can be found in the device's datasheet and application notes. The guide includes common issues, symptoms, and solutions, as well as diagnostic tests and procedures.
The DP83TC812SRHATQ1 is a IEEE 802.3-compliant PHY device, which means it is compatible with other IEEE 802.3-compliant devices. However, compatibility with specific devices may depend on the application and the specific requirements of the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83TC812SRHATQ1 Overview

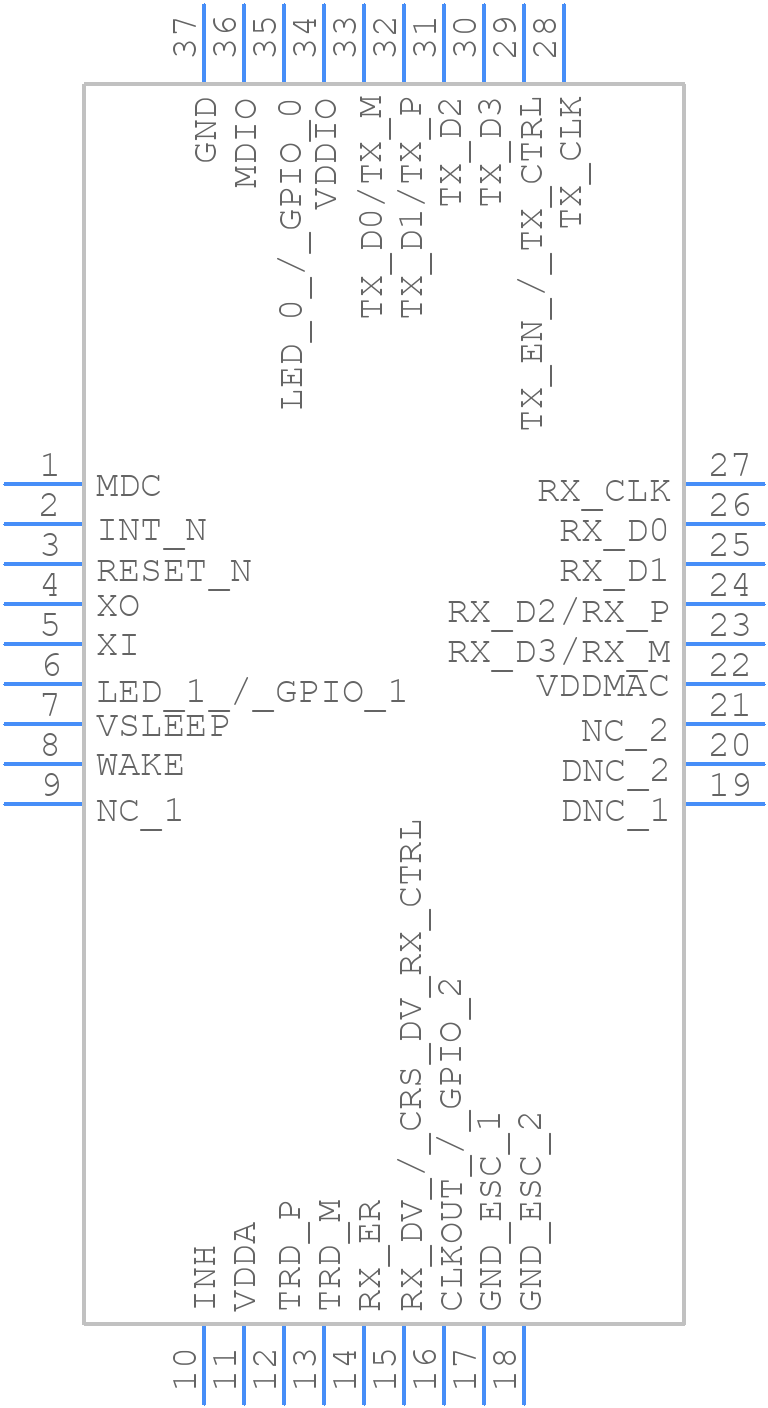

Use the download button to access the DP83TC812SRHATQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP83T,
or try a keyword search, such as Network Interfaces
