Texas Instruments provides a recommended PCB layout in the DP83TC814RRHATQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The DP83TC814RRHATQ1 supports multiple Ethernet speeds, including 10BASE-T, 100BASE-TX, and 1000BASE-T. Configuration is done through the device's register settings, which can be accessed through the MDIO interface. Refer to the datasheet and application notes for specific register settings and configuration guidelines.
The power consumption of the DP83TC814RRHATQ1 varies depending on the operating mode and Ethernet speed. According to the datasheet, the typical power consumption is around 350 mW in 1000BASE-T mode and 150 mW in 100BASE-TX mode. However, it's essential to consider the power consumption of the entire system, including the PHY, MAC, and other components.
Troubleshooting issues with the DP83TC814RRHATQ1 can be challenging. Start by verifying the PCB layout, component placement, and routing. Check the device's register settings and configuration. Use tools like oscilloscopes and protocol analyzers to debug the Ethernet signal. Texas Instruments also provides a range of debugging tools and resources, including application notes and FAQs.
The DP83TC814RRHATQ1 is specified to operate over an industrial temperature range of -40°C to 85°C. However, it's essential to ensure that the entire system, including the PCB, components, and connectors, can operate within this temperature range. Additionally, consider the reliability and durability of the system over the expected operating lifetime.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83TC814RRHATQ1 Overview

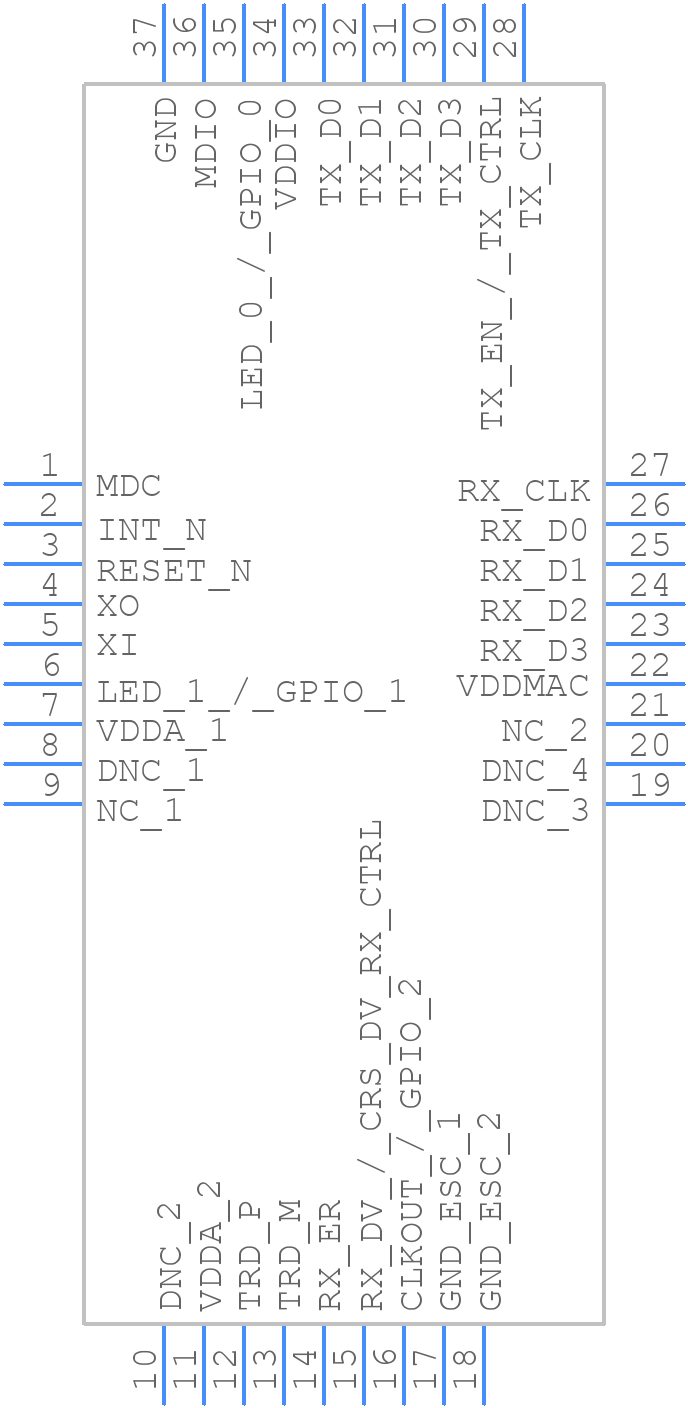

Use the download button to access the DP83TC814RRHATQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP83T,
or try a keyword search, such as Network Interfaces
