Texas Instruments provides a recommended PCB layout in the DP83TD510ERHBT evaluation module (EVM) user's guide, which can be found on the TI website. The EVM user's guide includes a detailed layout guide, including Gerber files and PCB design files.
The DP83TD510ERHBT has a variety of configuration options, including settings for the PHY, MAC, and other components. Texas Instruments provides a software development kit (SDK) that includes a configuration tool, as well as example code and documentation, to help engineers configure the device for their specific application.
The maximum cable length supported by the DP83TD510ERHBT depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 100 meters, but this can be affected by factors such as cable quality, signal attenuation, and electromagnetic interference (EMI).
Texas Instruments provides a variety of resources to help engineers troubleshoot issues with the DP83TD510ERHBT, including a troubleshooting guide, application notes, and technical support forums. Engineers can also use tools such as oscilloscopes and logic analyzers to debug issues with the device.
Yes, the DP83TD510ERHBT is designed to be compatible with other Texas Instruments devices, including microcontrollers, processors, and other PHY and MAC devices. Texas Instruments provides a range of devices and development tools that can be used together to create complete systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83TD510ERHBT Overview

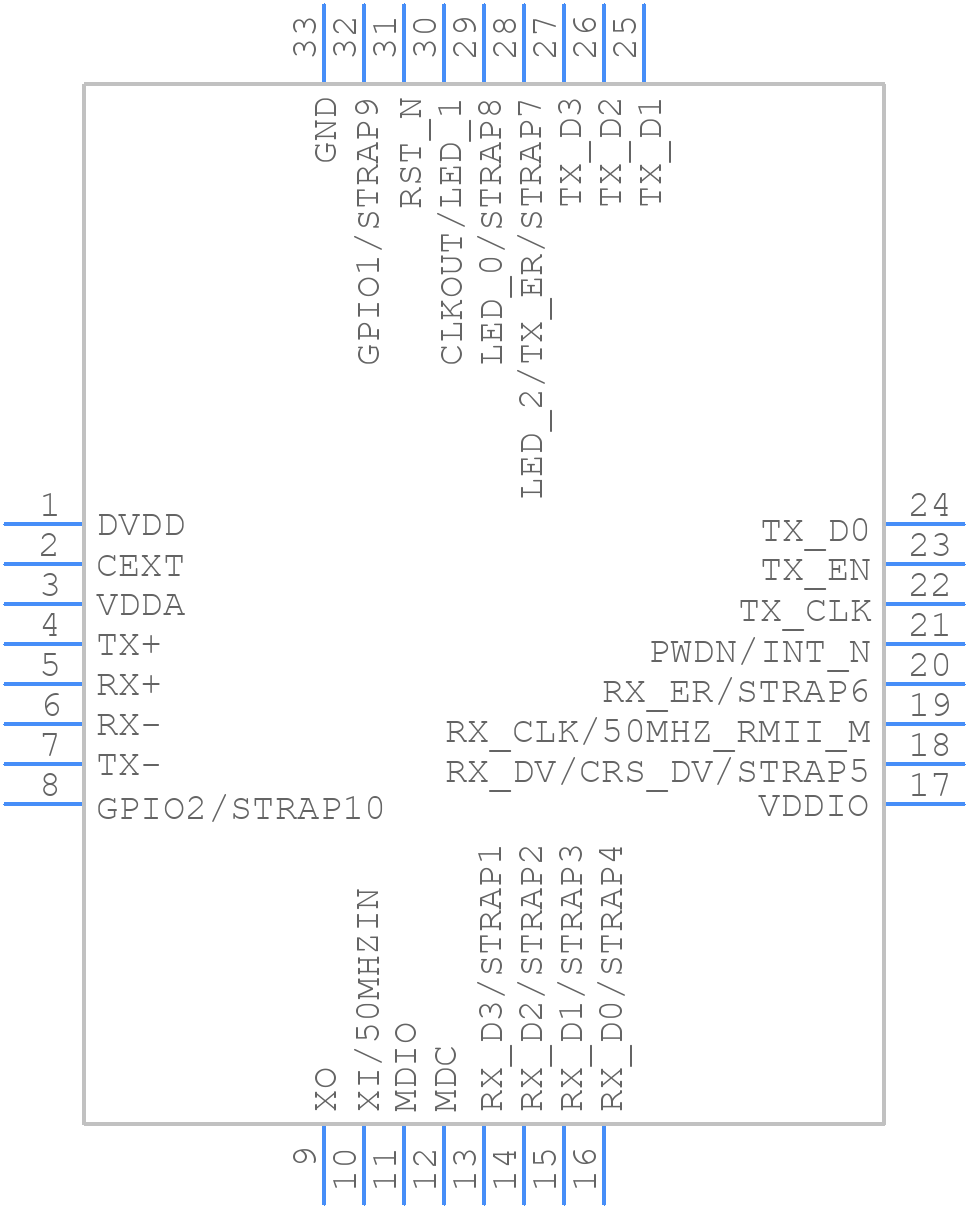

Use the download button to access the DP83TD510ERHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP83T,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
