DP83TG720SWRHARQ1 - Texas Instruments

Description: Ethernet ICs 1000BASE-T1 automotive Ethernet PHY with RGMII & SGMII

Download DP83TG720SWRHARQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

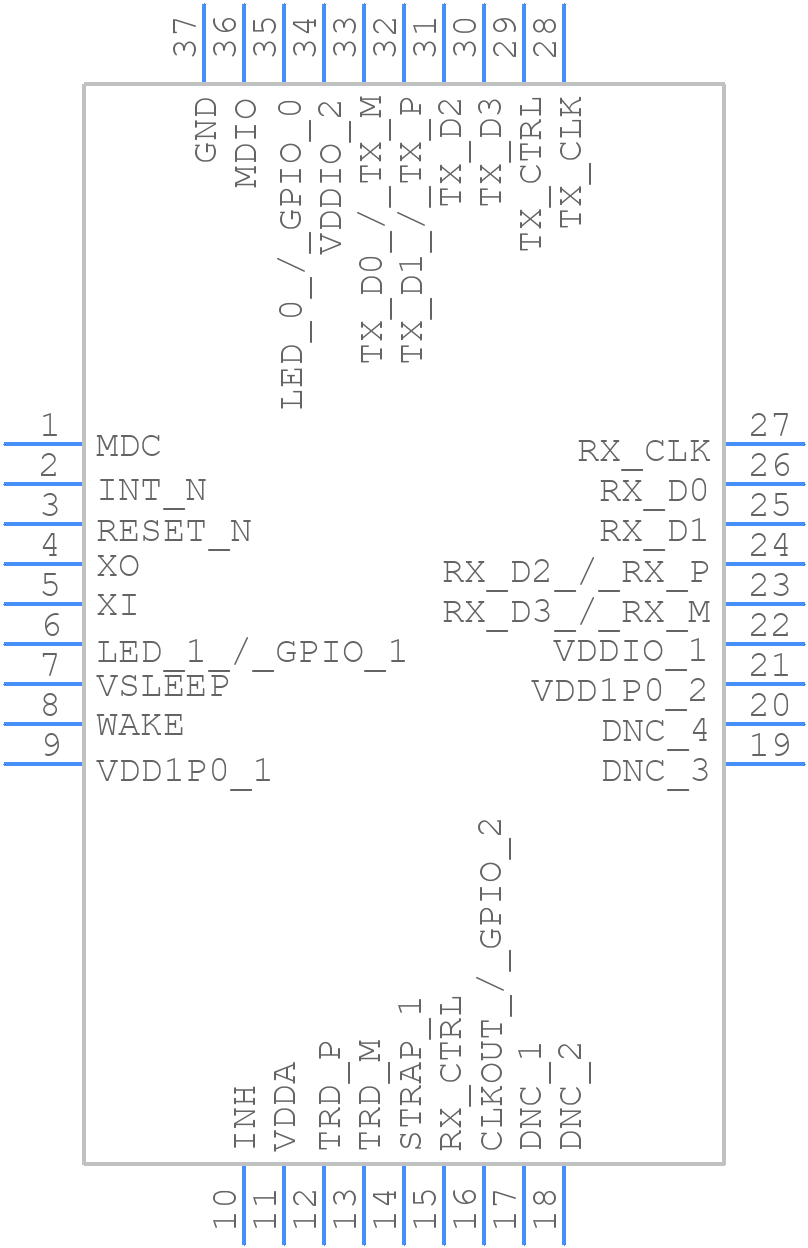

DP83TG720SWRHARQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83TG720SWRHARQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0036A
click to zoom
3D Models
DP83TG720SWRHARQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0036A
click to zoom

DP83TG720SWRHARQ1 Details

  • Manufacturer Part Number:

    DP83TG720SWRHARQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-09-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    225 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83TG720SWRHARQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) for optimal performance.
  • To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use signal shielding. Also, follow the guidelines in the 'Signal Integrity Layout Guidelines' application note (SLVA465) for optimal performance.
  • The maximum cable length supported by the DP83TG720SWRHARQ1 is 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to consult the 'USB Type-C and Power Delivery' application note (SLVA469) for more information.
  • To implement power delivery, follow the guidelines in the 'USB Power Delivery (PD) Controller' application note (SLVA468) and use the TI Power Delivery Software Development Kit (SDK) for configuration and testing.
  • The DP83TG720SWRHARQ1 has a maximum junction temperature of 150°C. Ensure proper thermal design and heat sinking to prevent overheating. Consult the 'Thermal Design Considerations' section in the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83TG720SWRHARQ1 Overview

Use the download button to access the DP83TG720SWRHARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP83T, or try a keyword search, such as Network Interfaces
