DP8422AV-25 - Texas Instruments

Description: IC CTRLR/DVR CMOS PROGRAM 84PLCC

Download DP8422AV-25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

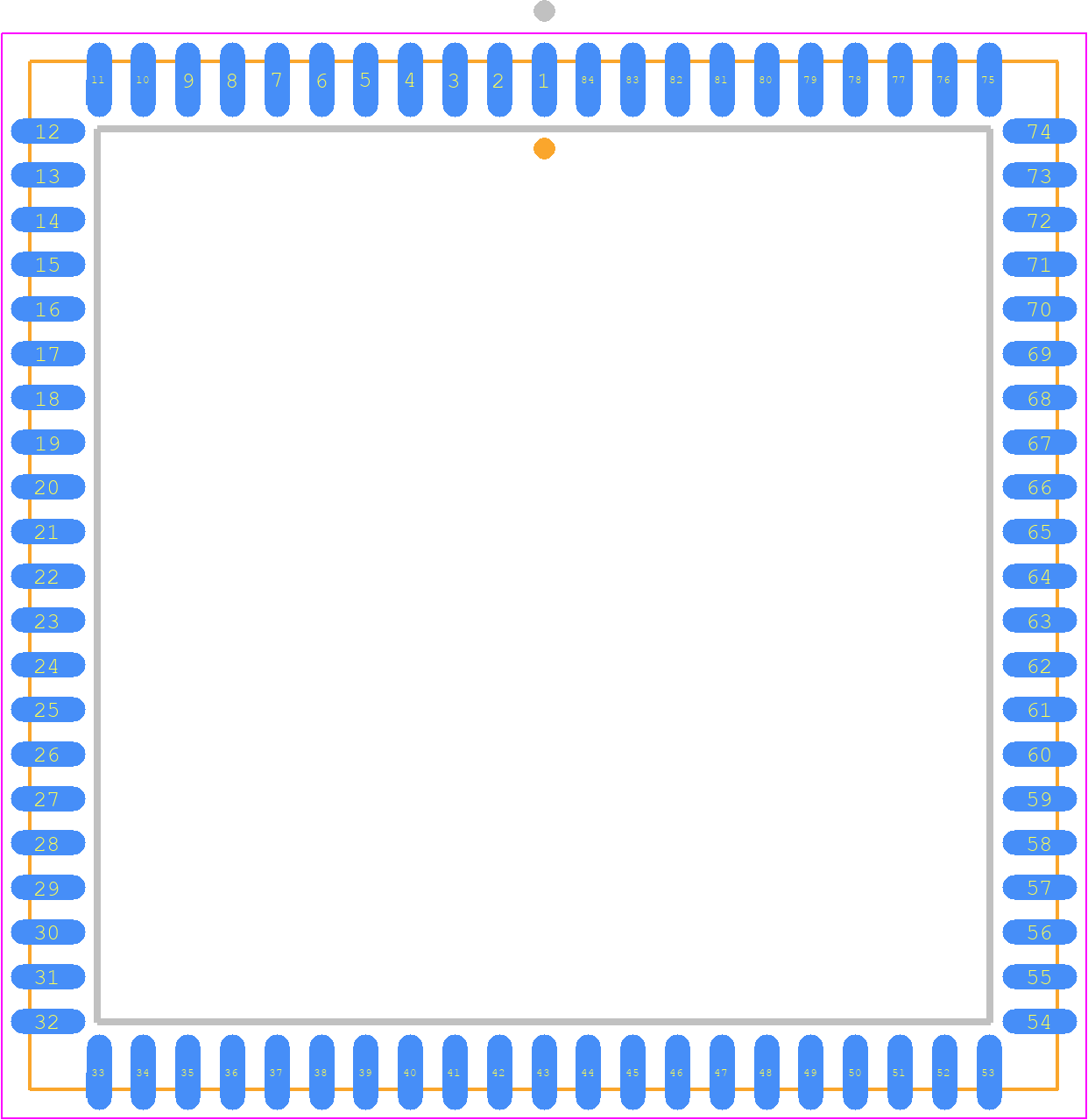

DP8422AV-25 - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - DP8422AV-25*
click to zoom

DP8422AV-25 Details

  • Manufacturer Part Number:

    DP8422AV-25

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LCC

  • Pin Count:

    84

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    MEMORY CONTROLLER, DRAM

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DP8422AV-25 Overview

Use the download button to access the DP8422AV-25 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DP842, or try a keyword search, such as Memory Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
