DP8570AV - Texas Instruments

Description: Real Time Clock Timer Control Peripheral

Download DP8570AV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

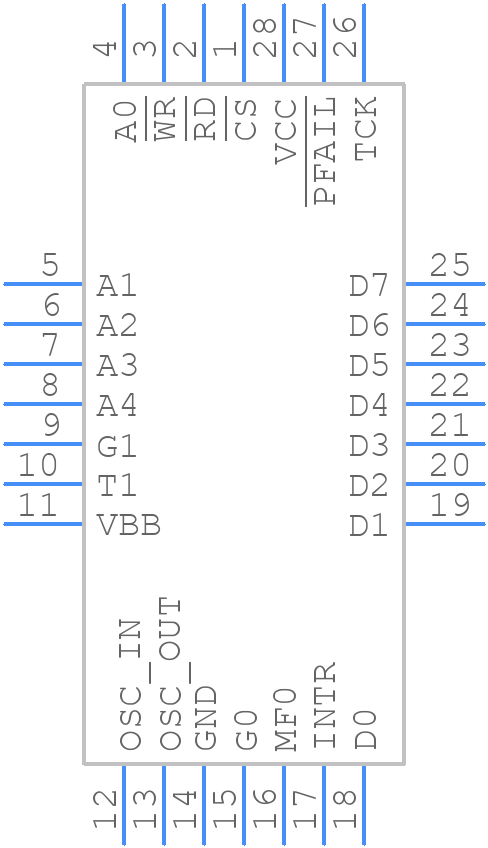

DP8570AV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

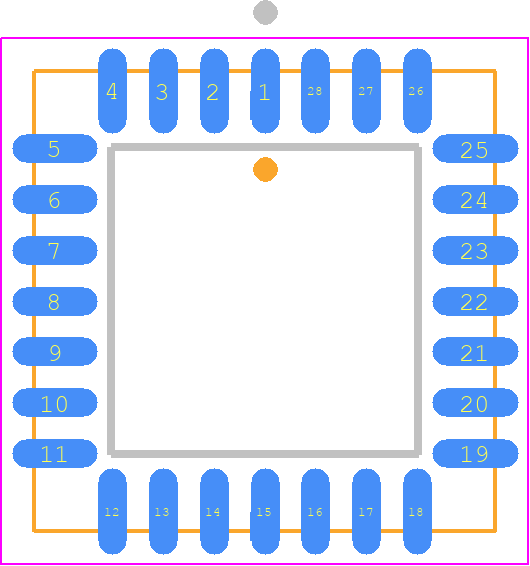

DP8570AV - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - NS Package Number V28A
click to zoom
3D Models
DP8570AV - Texas Instruments - 3D model - Plastic Leaded Chip Carrier - NS Package Number V28A
click to zoom

DP8570AV Details

  • Manufacturer Part Number:

    DP8570AV

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    4 PROGRAMMABLE MODES FOR TIMER; 4 SELECTABLE OSCILLATOR FREQUENCIES

  • Clock Frequency-Max:

    10 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, DIRECT ADDRESS

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e0

  • Length:

    11.43 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Bits:

    16

  • Number of Terminals:

    28

  • Number of Timers:

    2

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time-Min:

    1/100 SECOND

  • Volatile:

    YES

  • Width:

    11.43 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

DP8570AV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP8570AV datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a thermal design guide to ensure optimal performance.
  • The DP8570AV has a flexible voltage rail configuration. You can configure the device using the VCCIO and VCC pins to support different voltage rails. Refer to the datasheet's 'Voltage Rail Configuration' section and the 'Device Configuration' chapter for more information.
  • The DP8570AV supports data transfer rates up to 32.4 Gbps per lane, making it suitable for high-speed applications such as DisplayPort, USB, and PCIe.
  • The DP8570AV has built-in power management features, including a power-down mode and a low-power mode. You can control these modes using the PDN pin or through the I2C interface. Refer to the datasheet's 'Power Management' section for more information.
  • The DP8570AV has a high-power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and follow the recommended PCB layout guidelines to minimize thermal resistance. You can also use thermal simulation tools to optimize your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP8570AV Overview

Use the download button to access the DP8570AV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP857, or try a keyword search, such as Timers or RTCs
