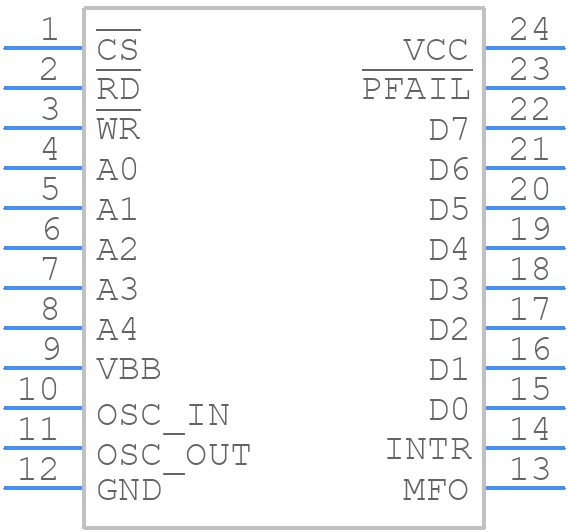

DP8571AN - Texas Instruments

DP8571AN Details

• Manufacturer Part Number:

  DP8571AN

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP, DIP24,.3

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  4 PROGRAMMABLE MODES FOR TIMER; PRESCALED XTAL OSC OUTPUT FOR TIMER; POWER FAIL I/P FOR BUS LOCK-OUT

• Clock Frequency-Max:

  0.032 MHz

• External Data Bus Width:

  8

• Information Access Method:

  PARALLEL, DIRECT ADDRESS

• Interrupt Capability:

  Y

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e0

• Length:

  31.915 mm

• Number of Bits:

  16

• Number of Terminals:

  24

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  2.4576 MHz

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (words):

  44

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time-Min:

  1/100 SECOND

• Volatile:

  YES

• Width:

  7.62 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
