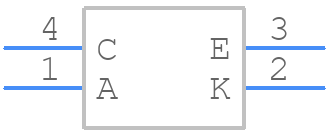

Symbol

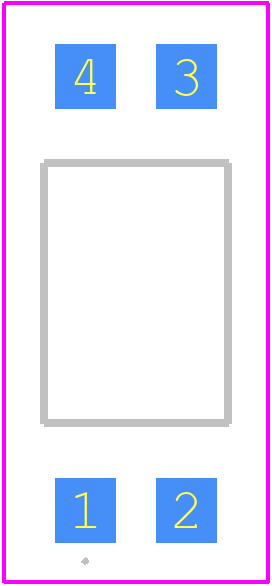

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DPC851L-TR
- Part Number DPC851L-TR
- Manufacturer Diodes Incorporated
- Pin Count 4
- Part Category Phototransistor
- Package Category Other
- Footprint Name Other - SLM-4
- Released Date Jul 24, 2025
- Last Modified Date Oct 15, 2025 8:34 AM UTC
- Pinout / Pin List Click Here (Member Only)
DPC851L-TR Details
-
Manufacturer Part Number:
DPC851L-TR
-
Manufacturer:
Diodes Incorporated
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
DPC851L-TR Overview
Use the download button to access the DPC851L-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DPC85,
or try a keyword search, such as Optocoupler
