DPG750 - Cosel

Description: Switching Power Supplies Front end pwr module

Download DPG750 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

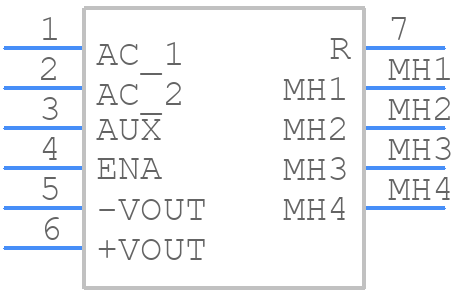

Symbol
DPG750 - Cosel - PCB symbol
click to zoom

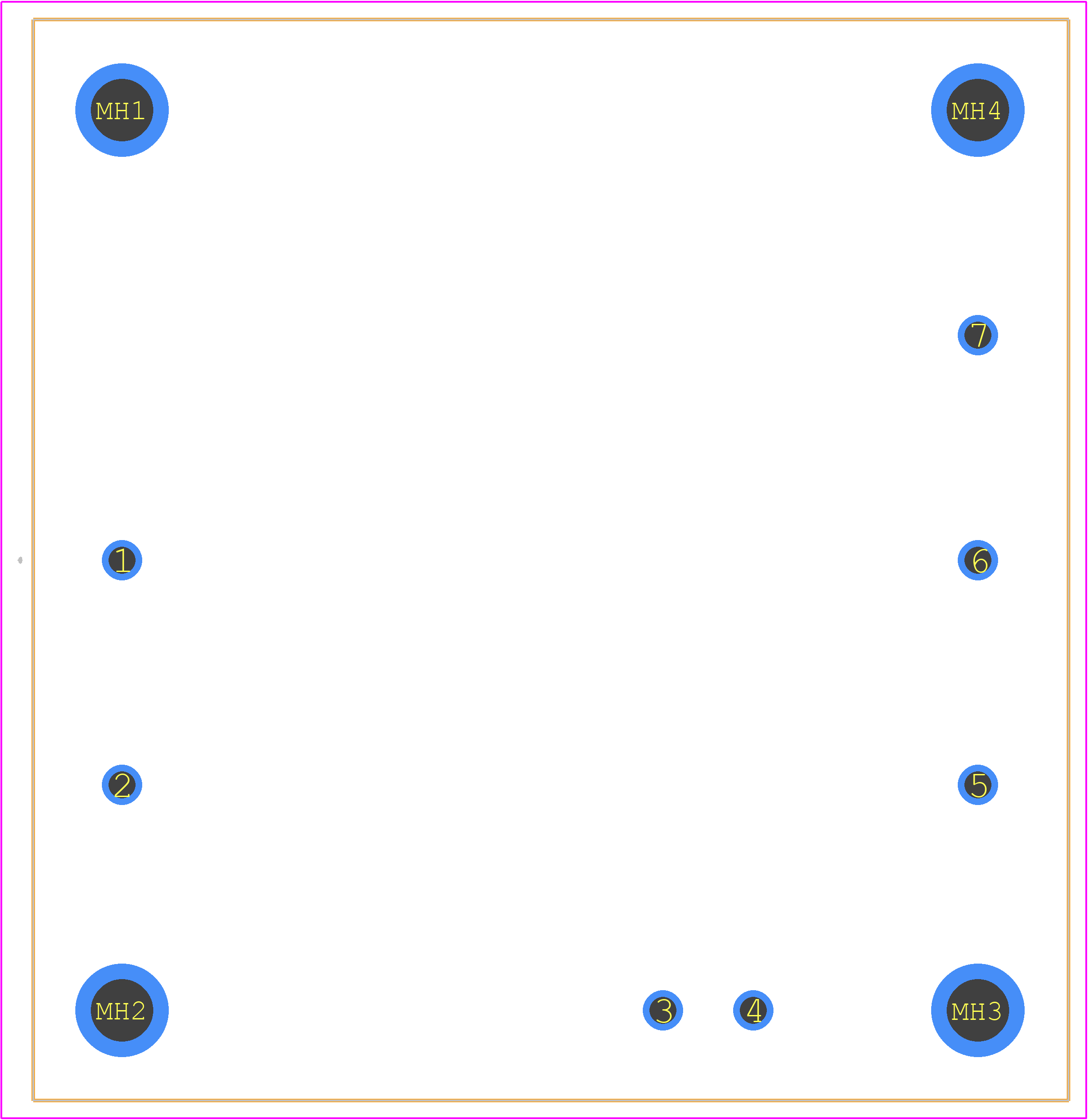

PCB Footprints
DPG750 - Cosel PCB footprint - Other - Other - DPG750-5
click to zoom
3D Models
DPG750 - Cosel - 3D model - Other - DPG750-5
click to zoom

DPG750 Details

  • Manufacturer Part Number:

    DPG750

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-5

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    3

  • Additional Feature:

    LG-MAX

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    170 V

  • Input Voltage-Nom:

    200 V

  • JESD-30 Code:

    R-XDMA-P5

  • Length:

    58.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Output Voltage-Max:

    367.2 V

  • Output Voltage-Min:

    352.8 V

  • Output Voltage-Nom:

    360 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    750 W

  • Trim/Adjustable Output:

    NO

  • Width:

    50.8 mm

DPG750 Frequently Asked Questions (FAQs)

  • Cosel recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to ensure efficient heat dissipation. A minimum of 1 inch x 1 inch of copper area is recommended for heat sinking.
  • To ensure EMC, Cosel recommends using a metal enclosure, keeping the module away from sensitive circuits, and using EMI filters on the input and output lines. Additionally, follow the recommended PCB layout and grounding scheme.
  • The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may affect the stability of the output voltage.
  • Yes, the DPG750 is designed to operate up to 5,000 meters (16,400 ft) above sea level. However, derating may be necessary for high-altitude applications. Consult Cosel's application notes for guidance.
  • Cosel recommends a fuse rating of 5A to 10A, depending on the input voltage and current requirements. The fuse should be sized to protect the module from overcurrent conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPG750 Overview

Use the download button to access the DPG750 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPG75, or try a keyword search, such as Power Supply Modules
