DPO2036DBB-7 - Diodes Incorporated

Description: Dataline Over Voltage Protection Switches U-QFN2020-12 T&R 3K

Download DPO2036DBB-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

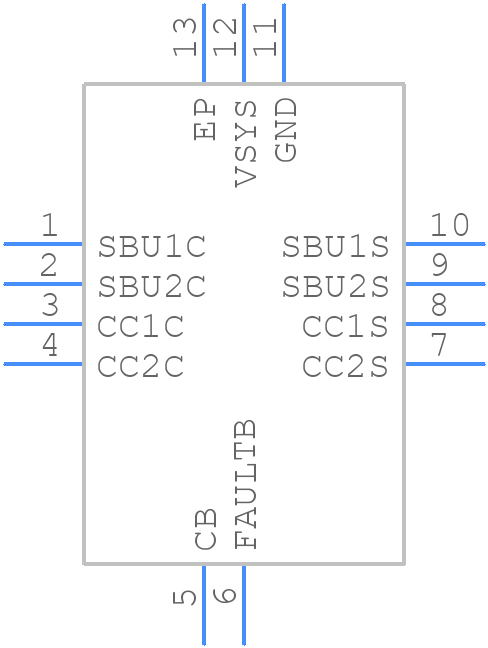

DPO2036DBB-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DPO2036DBB-7 - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - U-QFN2020-12
click to zoom
3D Models
DPO2036DBB-7 - Diodes Incorporated - 3D model - Quad Flat No-Lead - U-QFN2020-12
click to zoom

DPO2036DBB-7 Details

  • Manufacturer Part Number:

    DPO2036DBB-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-07-03

  • Manufacturer:

    Diodes Incorporated

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

DPO2036DBB-7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the DPO2036DBB-7 is 2.5V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of EN (enable) pin first, followed by VCC, and then VIN. For power-down, the sequence should be reversed.
  • The maximum current rating for the DPO2036DBB-7 is 3A.
  • To handle thermal management, it is recommended to provide a thermal pad on the PCB, and to ensure good airflow around the device. The device's thermal pad should be connected to a copper plane on the PCB to dissipate heat.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPO2036DBB-7 Overview

Use the download button to access the DPO2036DBB-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPO20, or try a keyword search, such as Power Management Circuits
