DPO2039DABQ-13 - Diodes Incorporated

Description: USB Interface IC Dataline Over Voltage Protection Switches U-QFN3030-16 T&R 3K

Download DPO2039DABQ-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

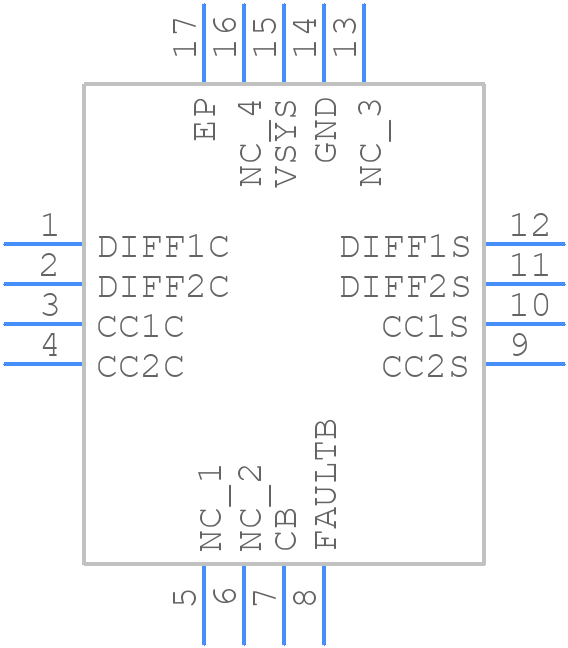

DPO2039DABQ-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DPO2039DABQ-13 - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DPO2039DABQ-13
click to zoom
3D Models
DPO2039DABQ-13 - Diodes Incorporated - 3D model - Quad Flat No-Lead - DPO2039DABQ-13
click to zoom

DPO2039DABQ-13 Details

  • Manufacturer Part Number:

    DPO2039DABQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

DPO2039DABQ-13 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the DPO2039DABQ-13 is 2.3V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum equivalent series resistance (ESR) of 1 ohm.
  • The maximum output current of the DPO2039DABQ-13 is 3A.
  • To protect the DPO2039DABQ-13 from overheating, ensure that the device is operated within the recommended operating temperature range of -40°C to 125°C, and provide adequate heat sinking and airflow.
  • Yes, the DPO2039DABQ-13 is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
