DPS1035FIA-13 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution SW24V/3.5A 1-ch. Power Switch

Download DPS1035FIA-13 Model
Schematic
symbols

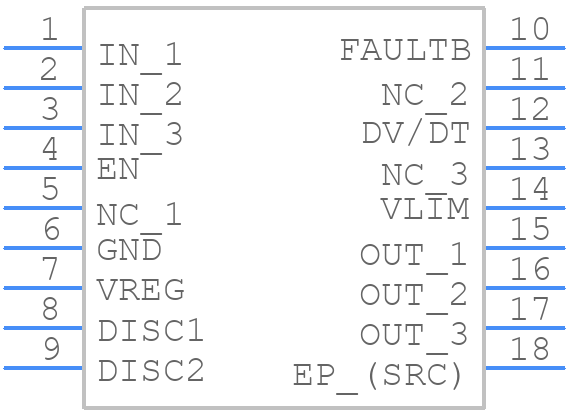

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DPS1035FIA-13 - Diodes Incorporated PCB footprint - Other - Other - V-QFN4040-17
click to zoom

DPS1035FIA-13 Details

  • Manufacturer Part Number:

    DPS1035FIA-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN4040, 17 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-01-30

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N17

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC17,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    3.7

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DPS1035FIA-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended to ensure good thermal conductivity.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be placed as close to the VIN pin as possible.
  • The maximum input voltage that can be applied to the DPS1035FIA-13 is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the DPS1035FIA-13 can be adjusted by using a resistor divider network between the FB pin and the output voltage. The resistor values can be calculated using the formula provided in the datasheet.
  • The maximum output current that the DPS1035FIA-13 can deliver is 3.5A. Exceeding this current may cause overheating and damage to the device.
