DPS1133FIA-13 - Diodes Incorporated

Description: USB Power SW Power Delivery Single 4.5V to 24V 3A 17-Pin VQFN T/R

Download DPS1133FIA-13 Model

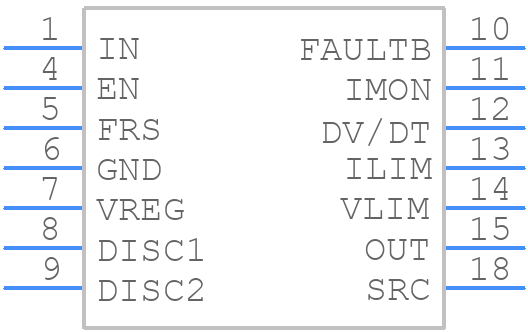

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DPS1133FIA-13 - Diodes Incorporated PCB footprint - Other - Other - DPS1133FIA-13
click to zoom
3D Models
DPS1133FIA-13 - Diodes Incorporated  - 3D model - Other - DPS1133FIA-13
click to zoom

DPS1133FIA-13 Details

  • Manufacturer Part Number:

    DPS1133FIA-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:3.24A: THERMAL SHUTDOWN:165C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N17

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC17,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.25V

  • Width:

    4 mm

DPS1133FIA-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended to ensure good thermal conductivity.
  • The device requires a stable input voltage (VIN) between 2.5V to 5.5V, and a decoupling capacitor (e.g., 1uF) should be placed close to the VIN pin to filter out noise.
  • The maximum current rating for the output pins is 50mA. Exceeding this rating may cause damage to the device or affect its reliability.
  • The device has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage.
  • The recommended operating temperature range is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPS1133FIA-13 Overview

Use the download button to access the DPS1133FIA-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPS11, or try a keyword search, such as Power Management Circuits
