DPS1135FIA-13 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution PD Switch

Download DPS1135FIA-13 Model

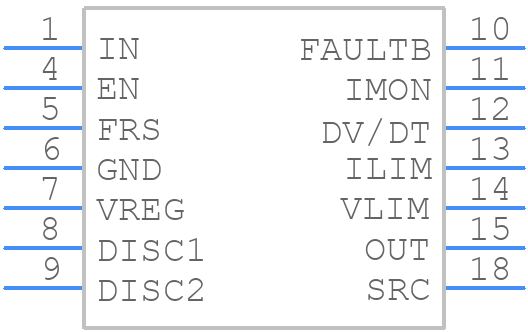

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DPS1135FIA-13 - Diodes Incorporated PCB footprint - Other - Other - DPS1135FIA-13-4
click to zoom
3D Models
DPS1135FIA-13 - Diodes Incorporated  - 3D model - Other - DPS1135FIA-13-4
click to zoom

DPS1135FIA-13 Details

  • Manufacturer Part Number:

    DPS1135FIA-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:4.95A; THERMAL SHUTDOWN:165C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N17

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC17,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

DPS1135FIA-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended for optimal thermal performance.
  • The device requires a 3.3V or 5V power supply, and the EN pin should be tied high to enable the device. The FAULT pin should be pulled up to the power supply through a resistor to ensure proper configuration.
  • The maximum current rating for the output pins is 50mA. Exceeding this rating may cause damage to the device.
  • Check the power supply voltage, ensure the EN pin is high, and verify the input voltage is within the recommended range. Also, check for any short circuits or incorrect connections on the output pins.
  • The device is rated for operation up to 125°C. However, the maximum junction temperature should not exceed 150°C. Ensure proper thermal design and heat dissipation to prevent overheating.
