DPX162500DT-8014A1 - TDK

Description: Diplexers, Pass Band/Low Band=1565 to 1585MHz, Pass Band/High Band=2400 to 2500MHz

Download DPX162500DT-8014A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

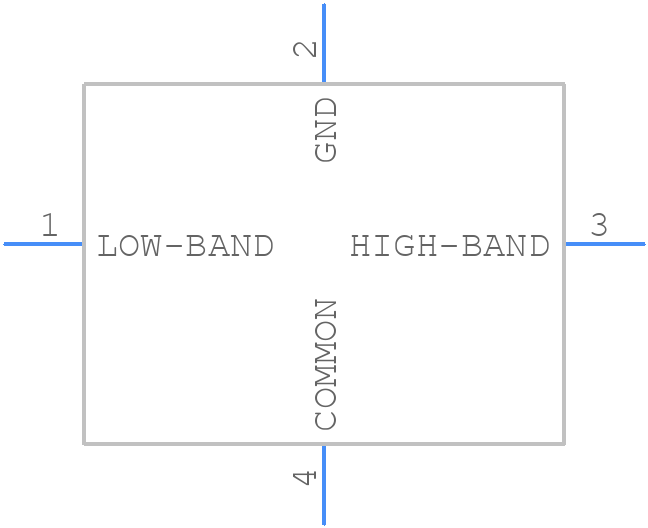

DPX162500DT-8014A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX162500DT-8014A1 - TDK PCB footprint - Other - Other - DPX162500DT-8014A1-1
click to zoom
3D Models
DPX162500DT-8014A1 - TDK - 3D model - Other - DPX162500DT-8014A1-1
click to zoom

DPX162500DT-8014A1 Details

  • Manufacturer Part Number:

    DPX162500DT-8014A1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Average Input Power:

    3 W

  • Center or Cutoff Frequency (fo/fc):

    2450 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.6 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    0.9 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    2

  • Width:

    0.8 mm

DPX162500DT-8014A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX162500DT-8014A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • To prevent damage, handle the DPX162500DT-8014A1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge. Follow the recommended storage and handling procedures outlined in the TDK Corporation's documentation.
  • The thermal resistance of the DPX162500DT-8014A1 is not explicitly stated in the datasheet. However, TDK Corporation provides thermal resistance values for similar products. For a specific thermal resistance value, contact TDK Corporation's technical support or consult the product's application note.
  • The DPX162500DT-8014A1 is designed to withstand certain levels of vibration. However, it's essential to consult TDK Corporation's documentation and application notes to determine the component's vibration tolerance. You may also need to perform additional testing to ensure the component's reliability in your specific application.
  • The recommended soldering profile for the DPX162500DT-8014A1 can be found in the TDK Corporation's application note or the IPC-J-STD-020 standard. A typical soldering profile includes a peak temperature of 240°C to 260°C, with a dwell time of 30 seconds to 60 seconds.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX162500DT-8014A1 Overview

Use the download button to access the DPX162500DT-8014A1 schematic symbol, PCB footprint, and 3D model.
