The recommended land pattern for the DPX165950DT-8026A1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the DPX165950DT-8026A1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge. Follow the recommended storage and handling procedures outlined in the TDK Corporation's documentation.
The thermal resistance of the DPX165950DT-8026A1 is not explicitly stated in the datasheet. However, you can estimate it using the thermal resistance of similar components or by consulting with TDK Corporation's application engineers. Typically, the thermal resistance of a component like this would be in the range of 10-20°C/W.
The DPX165950DT-8026A1 is designed to withstand certain levels of vibration, but the datasheet may not provide explicit vibration specifications. Consult with TDK Corporation's application engineers or refer to their reliability test reports to determine the component's vibration tolerance. You may need to perform additional testing or analysis to ensure the component's reliability in your specific application.
The optimal decoupling capacitor value for the DPX165950DT-8026A1 depends on the specific application, PCB layout, and power supply characteristics. As a general guideline, use a capacitor with a value between 10nF to 100nF, and a voltage rating that matches or exceeds the component's voltage rating. Consult with TDK Corporation's application engineers or refer to their decoupling capacitor selection guides for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX165950DT-8026A1 Overview

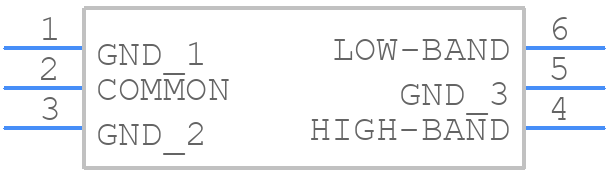

Use the download button to access the DPX165950DT-8026A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
