Part Image

DPX165950DT-8026D1 - TDK

Description: Multilayer Diplexers, Pass Band/Low Band=2400 to 2500MHz, Pass Band/High Band=4900 to 5950MHz, 1.6x0.8mm

Download DPX165950DT-8026D1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

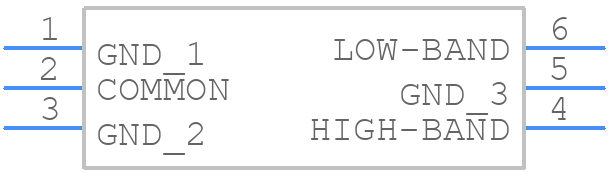

Symbol
DPX165950DT-8026D1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX165950DT-8026D1 - TDK PCB footprint - Other - Other - DPX165950DT-8026D1
click to zoom
3D Models
DPX165950DT-8026D1 - TDK - 3D model - Other - DPX165950DT-8026D1
click to zoom

DPX165950DT-8026D1 Details

  • Manufacturer Part Number:

    DPX165950DT-8026D1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    EIA STD PACKAGE SIZE 0603, 6 PIN

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Center or Cutoff Frequency (fo/fc):

    5425 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.6 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    0.8 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    0.8 mm

DPX165950DT-8026D1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX165950DT-8026D1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
  • To prevent damage, handle the DPX165950DT-8026D1 by the edges, avoid touching the pins, and use an anti-static wrist strap or mat. It's also recommended to follow the ESD handling procedures outlined in the IEC 61340-5-1 standard.
  • The thermal resistance of the DPX165950DT-8026D1 is not explicitly stated in the datasheet. However, TDK Corporation provides a thermal resistance calculator tool on their website, which can be used to estimate the thermal resistance based on the specific application and operating conditions.
  • The DPX165950DT-8026D1 is designed to withstand certain levels of vibration, but the specific vibration limits are not specified in the datasheet. It's recommended to consult with TDK Corporation's application engineers or refer to the relevant industry standards (e.g., IEC 60068-2-6) to determine the suitability of the component for high-vibration environments.
  • The recommended soldering profile for the DPX165950DT-8026D1 can be found in the TDK Corporation's application note or the IPC-J-STD-004 standard. It's essential to follow the recommended soldering profile to ensure reliable solder joints and prevent damage to the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX165950DT-8026D1 Overview

Use the download button to access the DPX165950DT-8026D1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16, or try a keyword search, such as General Purpose Passive Filters
