DPX165950DT-8030A1 - TDK

Description: Diplexers, Pass Band/Low Band=2400 to 2500MHz, Pass Band/High Band=4900 to 5950MHz

Download DPX165950DT-8030A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

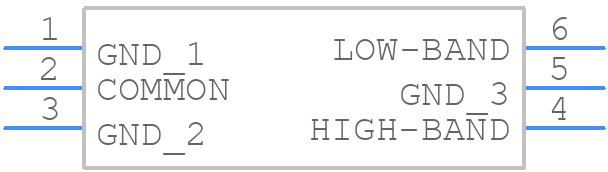

DPX165950DT-8030A1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX165950DT-8030A1 - TDK PCB footprint - Other - Other - DPX165950DT-8030A1-2
click to zoom
3D Models
DPX165950DT-8030A1 - TDK - 3D model - Other - DPX165950DT-8030A1-2
click to zoom

DPX165950DT-8030A1 Details

  • Manufacturer Part Number:

    DPX165950DT-8030A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    OTHER BAND OF FREQ ALSO AVAILABLE

  • Center or Cutoff Frequency (fo/fc):

    5425 MHz

  • Filter Type:

    DIPLEXER

  • Height:

    0.4 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.2 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    0.8 mm

DPX165950DT-8030A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DPX165950DT-8030A1 can be found in the TDK Corporation's application note or by contacting their technical support team. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
  • Proper thermal management is crucial for the DPX165950DT-8030A1. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink with a low thermal resistance. The device's thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
  • The maximum operating temperature range for the DPX165950DT-8030A1 is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
  • The DPX165950DT-8030A1 is designed to withstand moderate vibrations. However, if your application involves extreme vibrations, it's recommended to consult with TDK Corporation's technical support team to discuss specific requirements and potential customizations.
  • Store the DPX165950DT-8030A1 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 60%. Avoid exposing the device to corrosive substances or extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX165950DT-8030A1 Overview

Use the download button to access the DPX165950DT-8030A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16, or try a keyword search, such as General Purpose Passive Filters
