TDK provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
Proper thermal management is crucial to prevent overheating and ensure reliability. TDK recommends using a thermal pad or heat sink, and ensuring good airflow around the inductor. The datasheet provides thermal resistance and maximum operating temperature ratings to help with thermal design.
While the datasheet provides rated voltage and current values, it's essential to consider derating factors such as temperature, frequency, and waveform to determine the maximum allowable voltage and current. TDK's application notes or technical support can provide guidance on derating factors.
TDK provides a range of inductors with varying characteristics. To select the correct inductor, consider factors such as operating frequency, current requirements, voltage ratings, and physical size constraints. TDK's product selection guides or technical support can help with the selection process.
TDK's inductors are designed to meet high reliability and durability standards. The datasheet provides information on operating life, temperature range, and environmental testing. Additionally, TDK provides reliability data and failure rate estimates upon request.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DPX165950DT-8118A1 Overview

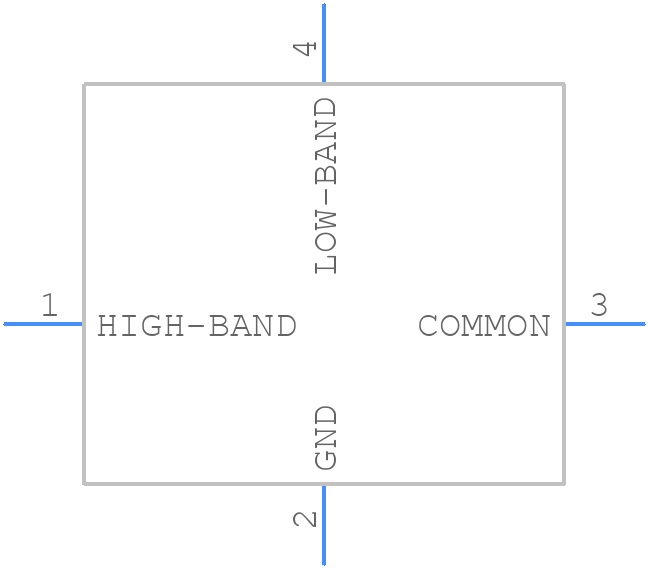

Use the download button to access the DPX165950DT-8118A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX16,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
