DPX255925DT-5079B1 - TDK

Description: Diplexers, Pass Band/Low Band=617 to 4200MHz, Pass Band/High Band=5150 to 5925MHz

Download DPX255925DT-5079B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

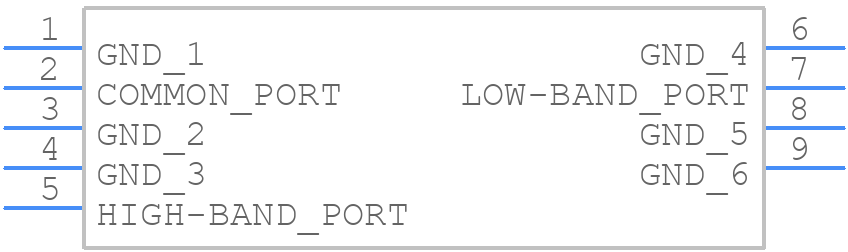

Symbol
DPX255925DT-5079B1 - TDK - PCB symbol
click to zoom
PCB Footprints
DPX255925DT-5079B1 - TDK PCB footprint - Other - Other - DPX255925DT-5079B1-1
click to zoom
3D Models
DPX255925DT-5079B1 - TDK - 3D model - Other - DPX255925DT-5079B1-1
click to zoom

DPX255925DT-5079B1 Details

  • Manufacturer Part Number:

    DPX255925DT-5079B1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 1008, 9 PIN

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DPX255925DT-5079B1 Overview

Use the download button to access the DPX255925DT-5079B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DPX25, or try a keyword search, such as General Purpose Passive Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
