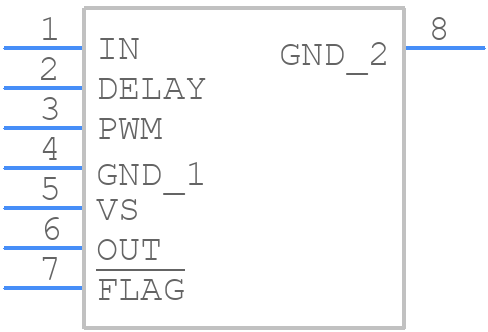

DRV101FKTWTG3 footprint, schematic symbol and 3D model by Texas Instruments

Symbol

click to zoom

PCB Footprints

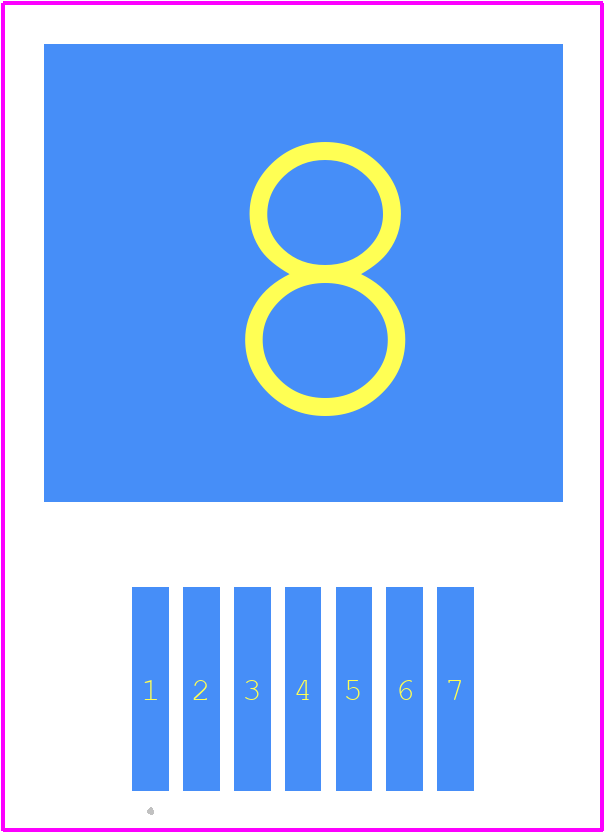

DRV101FKTWTG3 - Texas Instruments PCB footprint - Other - Other - DRV101FKTWTG3-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DRV101FKTWTG3
Part Number DRV101FKTWTG3
Manufacturer Texas Instruments
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - DRV101FKTWTG3-6
Released Date May 21, 2023
Last Modified Date May 21, 2023 4:24 AM UTC
Pinout / Pin List Click Here (Member Only)

DRV101FKTWTG3 Details

Manufacturer Part Number:
DRV101FKTWTG3
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
D2PAK
Package Description:
D2PAK-7
Pin Count:
7
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Texas Instruments
YTEOL:
0
Built-in Protections:
OVER CURRENT; THERMAL
Driver Number of Bits:
1
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PSSO-G7
JESD-609 Code:
e3
Length:
10.095 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Output Current-Max:
1 A
Output Peak Current Limit-Nom:
2.3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SMSIP7H,.55,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Seated Height-Max:
4.955 mm
Supply Voltage-Max:
60 V
Supply Voltage-Min:
9 V
Supply Voltage-Nom:
24 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Width:
8.89 mm

DRV101FKTWTG3 Frequently Asked Questions (FAQs)

A good PCB layout for the DRV101 involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
The input capacitor should be a low-ESR ceramic capacitor with a value of 10uF to 22uF, and the output capacitor should be a low-ESR electrolytic capacitor with a value of 22uF to 47uF. The capacitor values and types depend on the specific application and operating conditions.
The DRV101 is rated for operation from -40°C to 150°C, but the maximum operating temperature range depends on the specific application and the device's power dissipation. TI provides thermal derating curves in the datasheet to help determine the maximum operating temperature.
The DRV101 has built-in overvoltage protection (OVP) and overcurrent protection (OCP), but additional protection components may be required depending on the application. TI recommends using a voltage supervisor or a dedicated OVP/OCP IC to provide additional protection.
Yes, the DRV101 is qualified for automotive and high-reliability applications. TI provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP documentation.
