DRV102T - Texas Instruments

Description: PWM solenoid driver,DRV102T TO220-7 2.7A

Download DRV102T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

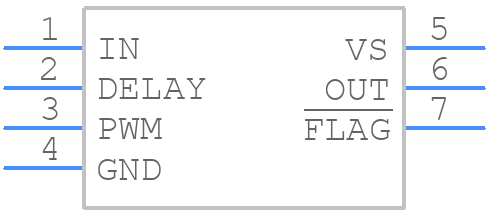

DRV102T - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV102T - Texas Instruments PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - KVT (R-PZFM-T7)
click to zoom
3D Models
DRV102T - Texas Instruments - 3D model - Transistor Outline, Vertical - KVT (R-PZFM-T7)
click to zoom

DRV102T Details

  • Manufacturer Part Number:

    DRV102T

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Package Description:

    TO-220, 7 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; THERMAL

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PZFM-T7

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    1 A

  • Output Peak Current Limit-Nom:

    2.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Equivalence Code:

    ZIP7,.15,.2TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

DRV102T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is 6V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 2.7V to 5.5V for optimal performance.
  • To properly power down the DRV102T, the EN pin should be pulled low. Additionally, the input pins should be driven low or left floating to prevent any unwanted voltage from being applied to the device.
  • For optimal performance, it's recommended to follow a star-grounding layout, where the GND pin is connected to a solid ground plane. The input and output traces should be kept short and away from noise sources. Additionally, decoupling capacitors should be placed close to the VCC pin.
  • The DRV102T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, and storing the device in an anti-static bag or container.
  • The DRV102T can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the quality of the input signal. It's recommended to consult the datasheet and application notes for more information.
