The maximum power dissipation of the DRV120PWR is dependent on the thermal design and layout of the PCB. However, according to the datasheet, the maximum junction temperature (TJ) is 150°C, and the thermal resistance (RθJA) is 34.4°C/W. Therefore, the maximum power dissipation can be calculated based on the operating conditions and thermal design.
To optimize the layout for the DRV120PWR, it is recommended to follow the layout guidelines provided in the datasheet and application notes. This includes keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it is recommended to use a thermal pad and vias to improve heat dissipation.
The recommended input capacitor value for the DRV120PWR is dependent on the input voltage and current requirements. However, a general guideline is to use a capacitor with a value of at least 10uF to 22uF, with a voltage rating of at least 2x the input voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
To protect the DRV120PWR from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a voltage monitor IC to detect and respond to voltage faults. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the device from voltage transients and spikes.
The maximum output current of the DRV120PWR is dependent on the input voltage and the output voltage. According to the datasheet, the maximum output current is 1.2A for a 12V input and a 5V output. However, the actual output current may be limited by the thermal design and the power dissipation of the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV120PWR Overview

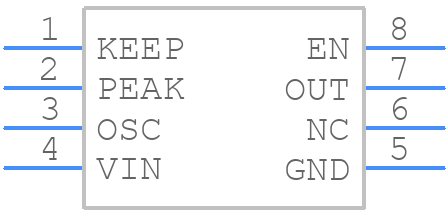

Use the download button to access the DRV120PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV12,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
