DRV2625YFFR - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Advanced ERM & LRA Haptics Driver with Smart Loop and Embedded Effects Library 9-DSBGA -40 to 85

Download DRV2625YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

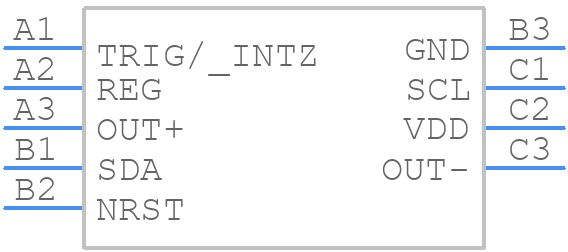

DRV2625YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2625YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0009-C01
click to zoom
3D Models
DRV2625YFFR - Texas Instruments - 3D model - BGA - YFF0009-C01
click to zoom

DRV2625YFFR Details

  • Manufacturer Part Number:

    DRV2625YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.468 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    11 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.331 mm

DRV2625YFFR Frequently Asked Questions (FAQs)

  • The DRV2625YFFR requires careful layout and placement to ensure proper operation. TI recommends placing the device near the haptic actuator, using a solid ground plane, and keeping the power and ground traces separate from the signal traces.
  • To optimize the DRV2625YFFR for low-power operation, use the lowest possible voltage supply, reduce the output current, and adjust the gain settings. Additionally, consider using the device's built-in low-power modes, such as the 'Sleep' mode.
  • The DRV2625YFFR can drive an output signal with an amplitude of up to 140Vpp (peak-to-peak) into a 100nF load capacitor.
  • To ensure reliable operation in high-temperature environments, ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions and thermal specifications outlined in the datasheet.
  • For debugging issues with the DRV2625YFFR, use a logic analyzer or oscilloscope to monitor the device's input and output signals, and check the device's status registers for error flags. Consult the datasheet and application notes for troubleshooting guidelines.
