Texas Instruments provides a recommended PCB layout in the DRV2665RGPT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the DRV2665RGPT depends on the specific application requirements, such as the transducer type, frequency range, and desired output power. Texas Instruments provides a gain calculation tool and application notes that can help engineers optimize the gain setting for their specific use case.
The DRV2665RGPT has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly heat-sinked and that the thermal management is adequate to prevent overheating.
The DRV2665RGPT has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, engineers should also consider adding external protection components, such as TVS diodes and fuses, to ensure that the device is protected from voltage transients and current surges.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a total capacitance of at least 10 μF. The capacitors should be placed close to the device and connected to the power supply pins using short, low-impedance traces.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV2665RGPT Overview

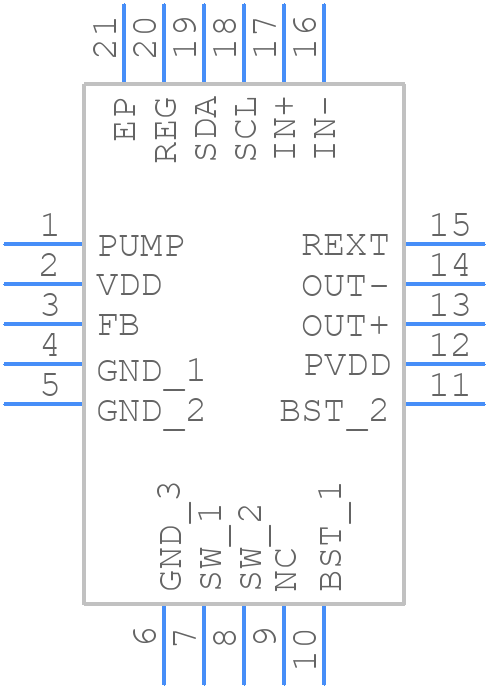

Use the download button to access the DRV2665RGPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
