DRV2667RGPR - Texas Instruments

Description: Piezo Haptic Driver with Boost, Digital Front End, and Internal Waveform Memory

Download DRV2667RGPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

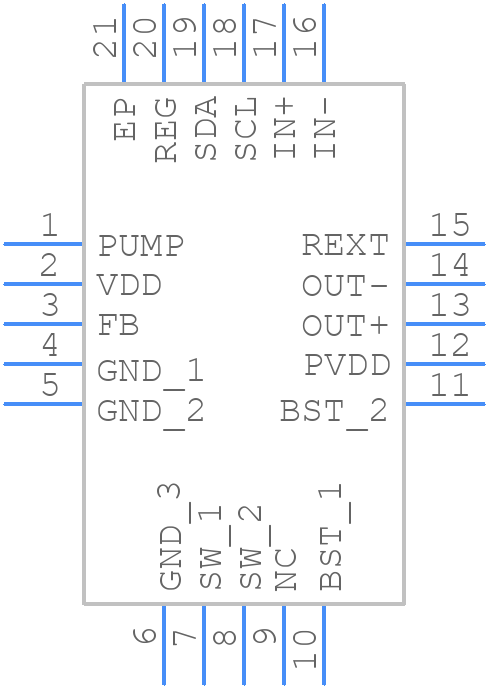

DRV2667RGPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2667RGPR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom
3D Models
DRV2667RGPR - Texas Instruments - 3D model - Quad Flat No-Lead - RGP (S-PVQFN-N20)
click to zoom

DRV2667RGPR Details

  • Manufacturer Part Number:

    DRV2667RGPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    4

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    200 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV2667RGPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV2667RGPR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the haptic actuator. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choosing the right haptic actuator depends on the specific requirements of your application, such as the type of vibration, amplitude, and frequency. TI provides a haptic actuator selection guide and recommends considering factors like actuator type, resonance frequency, and impedance.
  • The DRV2667RGPR has a maximum voltage rating of 5.5V and a maximum current rating of 1.5A. However, the actual voltage and current ratings may vary depending on the specific application and haptic actuator used.
  • The DRV2667RGPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor. The device will automatically shut down if the current exceeds the programmed limit.
  • While the DRV2667RGPR is optimized for use with TI's haptic actuators, it can be used with non-standard actuators. However, the device's performance and efficiency may vary depending on the actuator's characteristics and impedance.
