DRV401AIDWP - Texas Instruments

Description: Texas Instruments DRV401AIDWP, Current Sensor, 20-Pin, SOIC

Download DRV401AIDWP Model

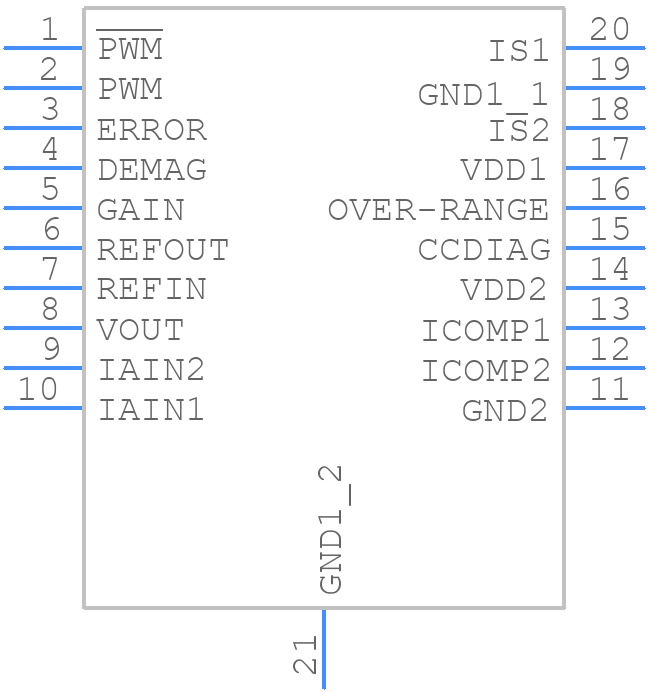

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

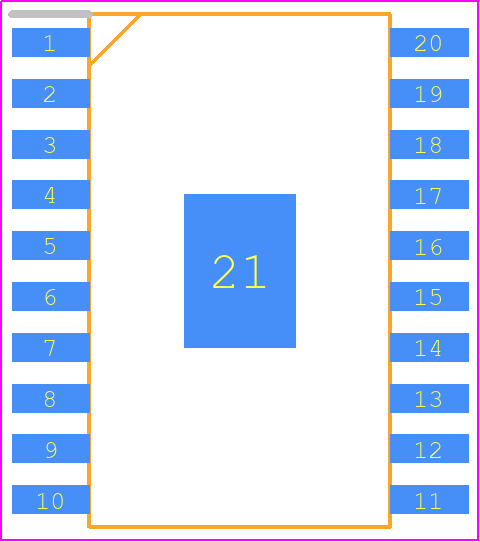

PCB Footprints
DRV401AIDWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWP (R-PDSO-G20)
click to zoom
3D Models
DRV401AIDWP - Texas Instruments  - 3D model - Small Outline Packages - DWP (R-PDSO-G20)
click to zoom

DRV401AIDWP Details

  • Manufacturer Part Number:

    DRV401AIDWP

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.825 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.52 mm

DRV401AIDWP Frequently Asked Questions (FAQs)

  • The DRV401AIDWP can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Follow the recommended layout guidelines in the datasheet, keeping the high-current paths short and away from sensitive analog signals. Use a solid ground plane, and consider using a shielded inductor and a common-mode choke to reduce EMI.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor (CIN). X5R or X7R dielectric types are suitable for this application.
  • The output voltage can be adjusted by changing the resistor divider ratio (RFB1 and RFB2) connected to the FB pin. Use the formula provided in the datasheet to calculate the required resistor values for the desired output voltage.
  • The EN (enable) pin is used to turn the device on or off. Connect EN to VIN to enable the device, or connect it to GND to disable it. You can also use an external logic signal to control the EN pin.
