DRV401AIDWPR - Texas Instruments

Description: Fluxgate Magnetic Sensor Signal Conditioning IC for Closed-Loop Applications

Download DRV401AIDWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

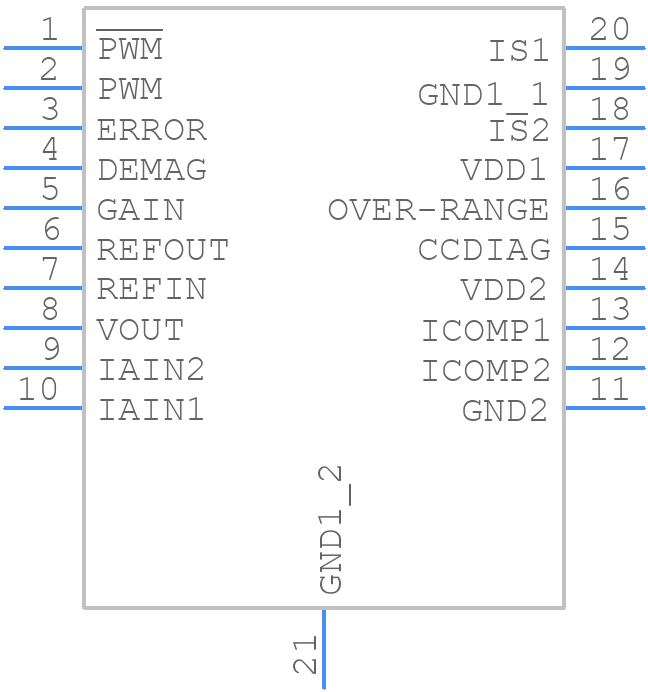

DRV401AIDWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV401AIDWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWP (R-PDSO-G20)
click to zoom
3D Models
DRV401AIDWPR - Texas Instruments - 3D model - Small Outline Packages - DWP (R-PDSO-G20)
click to zoom

DRV401AIDWPR Details

  • Manufacturer Part Number:

    DRV401AIDWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.825 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.52 mm

DRV401AIDWPR Frequently Asked Questions (FAQs)

  • The DRV401AIDWPR can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The DRV401AIDWPR requires a 3.3V or 5V power supply, and it's essential to decouple the power pins with a 0.1uF ceramic capacitor to reduce noise and ensure stable operation.
  • The EN (Enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. This pin can be used to control the driver's power consumption or to implement a shutdown feature.
  • The DRV401AIDWPR can be configured for half-bridge or full-bridge operation by connecting the appropriate pins. For half-bridge operation, connect the HBEN pin to VCC, and for full-bridge operation, connect the HBEN pin to GND. Refer to the datasheet for specific pin connections and configurations.
  • The DRV401AIDWPR can deliver up to 1A of output current per channel, but the actual current limit depends on the application, PCB design, and thermal considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV401AIDWPR Overview

Use the download button to access the DRV401AIDWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV40, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
