DRV401AIRGWR - Texas Instruments

Description: Fluxgate Magnetic Sensor Signal Conditioning IC for Closed-Loop Applications

Download DRV401AIRGWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

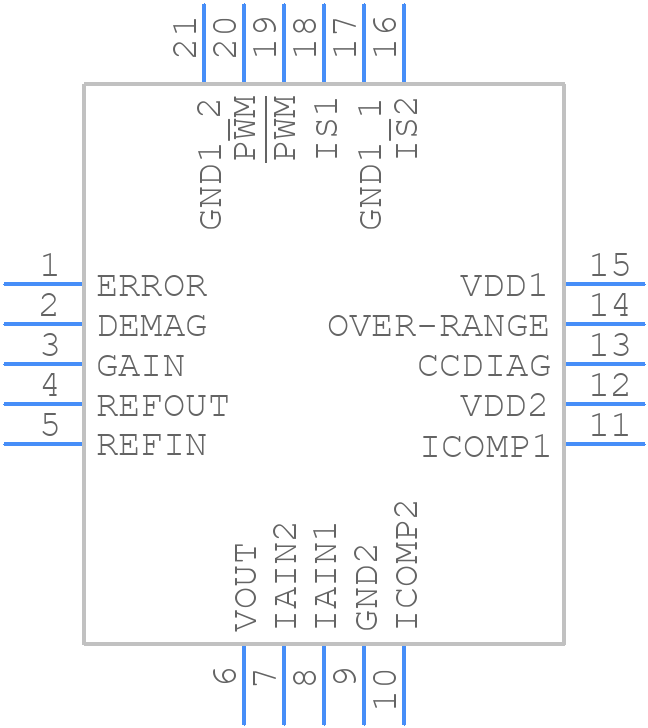

Symbol
DRV401AIRGWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV401AIRGWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGW(S-PVQFN-N20)
click to zoom
3D Models
DRV401AIRGWR - Texas Instruments - 3D model - Quad Flat No-Lead - RGW(S-PVQFN-N20)
click to zoom

DRV401AIRGWR Details

  • Manufacturer Part Number:

    DRV401AIRGWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DRV401AIRGWR Frequently Asked Questions (FAQs)

  • The DRV401AIRGWR can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The sense resistor value depends on the desired current limit and the voltage supply. A general guideline is to choose Rs = (Vsupply - Vout) / (2 * Imax), where Vsupply is the input voltage, Vout is the output voltage, and Imax is the maximum current limit.
  • The EN pin is an active-high input that enables or disables the device. When EN is high, the device is enabled, and when EN is low, the device is disabled and enters a low-power state.
  • The DRV401AIRGWR has built-in OCP and OVP. When an overcurrent or overvoltage condition is detected, the device will limit the current or shut down to protect itself and the load. The device will automatically recover when the fault condition is removed.
  • To ensure optimal performance and minimize electromagnetic interference (EMI), it is recommended to follow a 4-layer PCB stackup, use a solid ground plane, and keep the input and output traces separate and as short as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV401AIRGWR Overview

Use the download button to access the DRV401AIRGWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV40, or try a keyword search, such as Other Interface ICs
