DRV401AIRGWT - Texas Instruments

Description: Fluxgate Magnetic Sensor Signal Conditioning IC for Closed-Loop Applications

Download DRV401AIRGWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

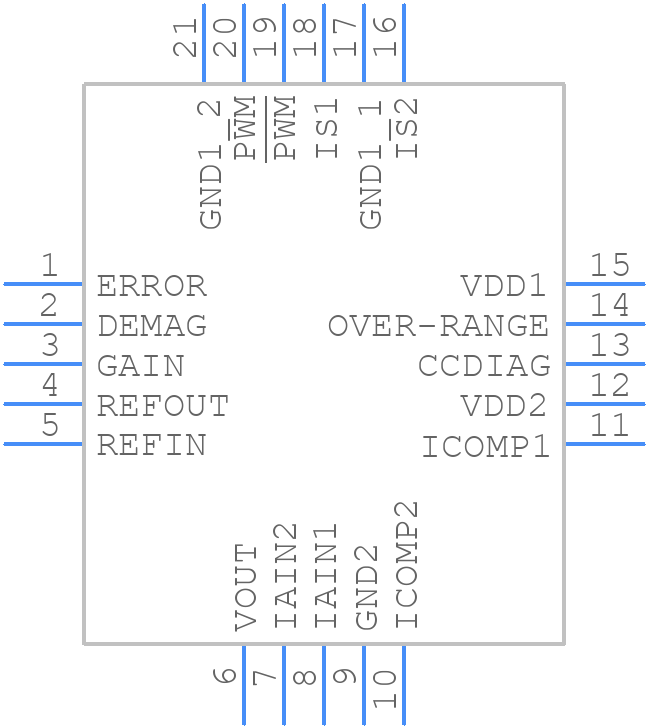

DRV401AIRGWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV401AIRGWT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGW0020A
click to zoom
3D Models
DRV401AIRGWT - Texas Instruments - 3D model - Quad Flat No-Lead - RGW0020A
click to zoom

DRV401AIRGWT Details

  • Manufacturer Part Number:

    DRV401AIRGWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DRV401AIRGWT Frequently Asked Questions (FAQs)

  • The DRV401AIRGWT can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • TI recommends following the PCB layout guidelines in the datasheet, including keeping the high-current paths short and wide, using a solid ground plane, and placing decoupling capacitors close to the device.
  • TI recommends using a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 10V or higher, placed as close as possible to the VIN pin.
  • The current limit can be adjusted by changing the value of the sense resistor (RS) connected between the SENSE pin and GND. A smaller RS value increases the current limit, while a larger RS value decreases it.
  • The EN (enable) pin is used to turn the device on and off. When EN is high, the device is enabled, and when EN is low, the device is disabled. The EN pin can be connected to a logic signal or a switch to control the device's operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV401AIRGWT Overview

Use the download button to access the DRV401AIRGWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV40, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
