DRV425RTJR - Texas Instruments

Description: Board Mount Current Sensors Integrated Fluxgate Magnetic Sensor IC for Open-Loop Applications 20-QFN -40 to 125

Download DRV425RTJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

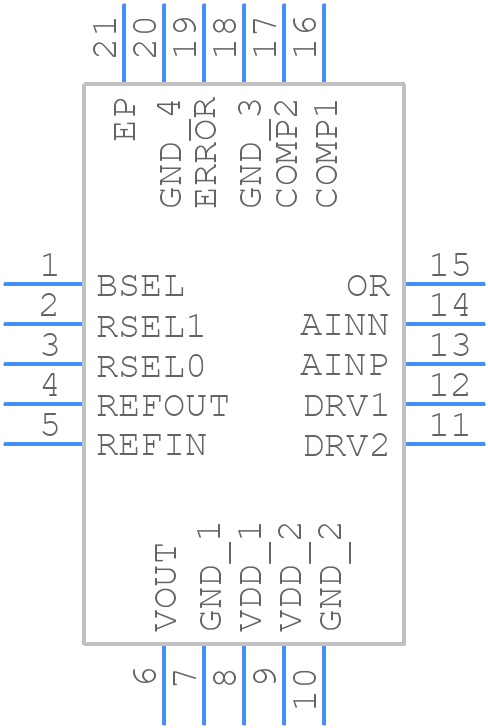

DRV425RTJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV425RTJR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ (S-PWQFN-N20)_3
click to zoom
3D Models
DRV425RTJR - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ (S-PWQFN-N20)_3
click to zoom

DRV425RTJR Details

  • Manufacturer Part Number:

    DRV425RTJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV425RTJR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is 6.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V for reliable operation.
  • To ensure the output stage is properly biased, make sure to connect the output pins (OUT1 and OUT2) to a load impedance that is within the recommended range of 4Ω to 16Ω. Additionally, ensure that the output voltage swing is within the recommended range of 0.5V to 3.5V.
  • For optimal performance, it's recommended to follow a star-grounding layout, where the ground pins are connected to a central ground point. Keep the input and output traces separate and avoid crossing them over each other. Also, use a 10nF to 100nF decoupling capacitor between the VCC pin and ground to reduce noise and ensure stable operation.
  • The DRV425RTJR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • The DRV425RTJR has a thermal derating of 1.67mW/°C above 25°C. This means that the device's power dissipation should be reduced by 1.67mW for every degree Celsius above 25°C to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV425RTJR Overview

Use the download button to access the DRV425RTJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV42, or try a keyword search, such as Other Signal Circuits
