DRV425RTJT - Texas Instruments

Description: TEXAS INSTRUMENTS - DRV425RTJT - MAGNETIC FIELD SENSOR, SINGLE AXIS, WQFN

Download DRV425RTJT Model
Schematic
symbols

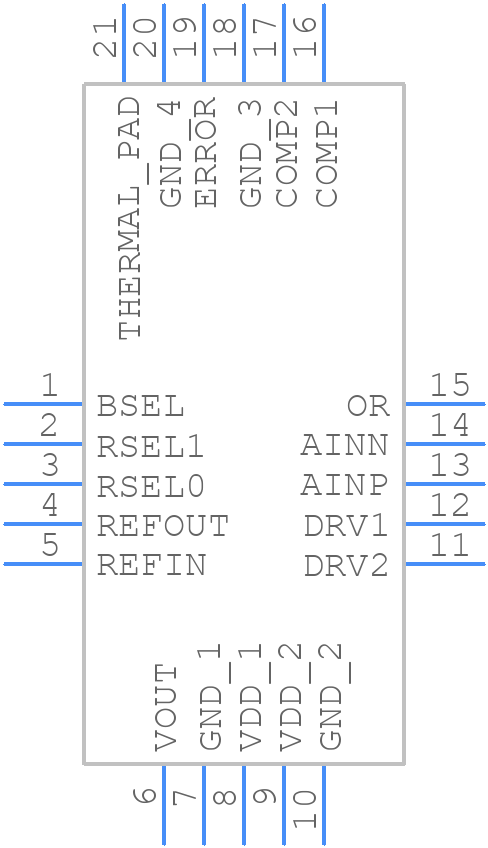

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DRV425RTJT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ (S-PWQFN-N20)_3
click to zoom
3D Models
DRV425RTJT - Texas Instruments  - 3D model - Quad Flat No-Lead - RTJ (S-PWQFN-N20)_3
click to zoom

DRV425RTJT Details

  • Manufacturer Part Number:

    DRV425RTJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV425RTJT Frequently Asked Questions (FAQs)

  • The DRV425RTJT can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Follow the recommended PCB layout guidelines in the datasheet, including keeping the high-current paths short and away from sensitive analog signals, and using a solid ground plane to reduce EMI.
  • The recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric, and a voltage rating of 10V to 25V, depending on the specific application requirements.
  • No, the DRV425RTJT is rated for a maximum input voltage of 24V. Exceeding this voltage may damage the device. For high-voltage applications, consider using a different device or adding external voltage regulation.
  • Check the input voltage, current, and temperature, and ensure proper PCB layout and thermal management. Use oscilloscopes and current probes to measure waveforms and currents. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV425RTJT Overview

Use the download button to access the DRV425RTJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV42, or try a keyword search, such as Other Signal Circuits
