DRV5023AJQDBZT - Texas Instruments

Description: 2.5V to 38V Hall Effect Unipolar Switch

Download DRV5023AJQDBZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

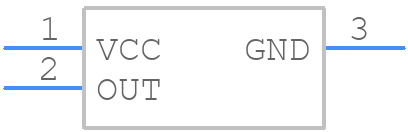

DRV5023AJQDBZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV5023AJQDBZT - Texas Instruments PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - DBZ0003A_1-1
click to zoom
3D Models
DRV5023AJQDBZT - Texas Instruments - 3D model - SOT23 (3-Pin) - DBZ0003A_1-1
click to zoom

DRV5023AJQDBZT Details

  • Manufacturer Part Number:

    DRV5023AJQDBZT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-23-3

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT HAS SENSITIVITY 6.9 MT, SHORT CIRCUIT PROTECTION
