SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
26 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
18 V
Supply Voltage1-Max:
24 V
Supply Voltage1-Min:
18 V
Supply Voltage1-Nom:
26 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
2 µs
Turn-on Time:
10000 µs
Width:
6.2 mm
DRV595DAPR Frequently Asked Questions (FAQs)
A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The DRV595DAPR has an exposed thermal pad, so ensure good thermal contact with the PCB. Refer to the TI application note 'DRV595 Thermal Design Considerations' for more information.
The input capacitor (CIN) should be a low-ESR ceramic capacitor with a value between 10uF to 22uF. The capacitor should be placed close to the VIN pin and have a low impedance path to the GND pin. A 10uF, X5R or X7R capacitor is a good starting point.
The DRV595DAPR can deliver up to 2.5A of output current. However, the actual output current depends on the input voltage, output voltage, and thermal conditions. Ensure proper thermal design and heat sinking to achieve the maximum output current.
Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. You can also add a voltage clamp or a TVS diode to protect the DRV595DAPR from voltage transients. Ensure the input voltage is within the recommended range of 4.5V to 18V.
The EN (enable) pin is an active-high input that enables or disables the DRV595DAPR. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use the EN pin to turn the device on or off, or to implement a shutdown feature in your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV595DAPR Overview

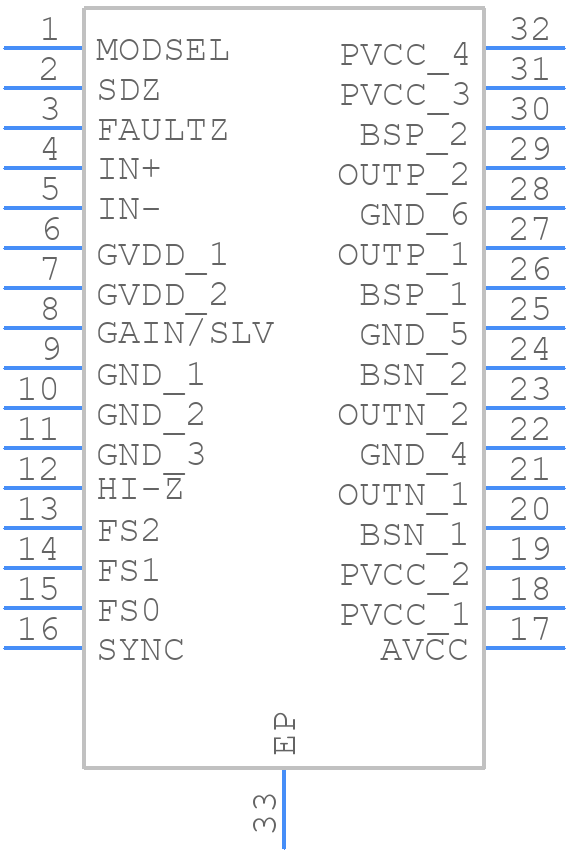

Use the download button to access the DRV595DAPR schematic symbol, PCB footprint, and 3D model.
