DRV8106SQRHBRQ1 - Texas Instruments

Description: Gate Drivers Automotive, 40-V, half-bridge Smart Gate Driver w/offline diagnostics and inline current sense amp. 32-VQFN -40 to 125

Download DRV8106SQRHBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

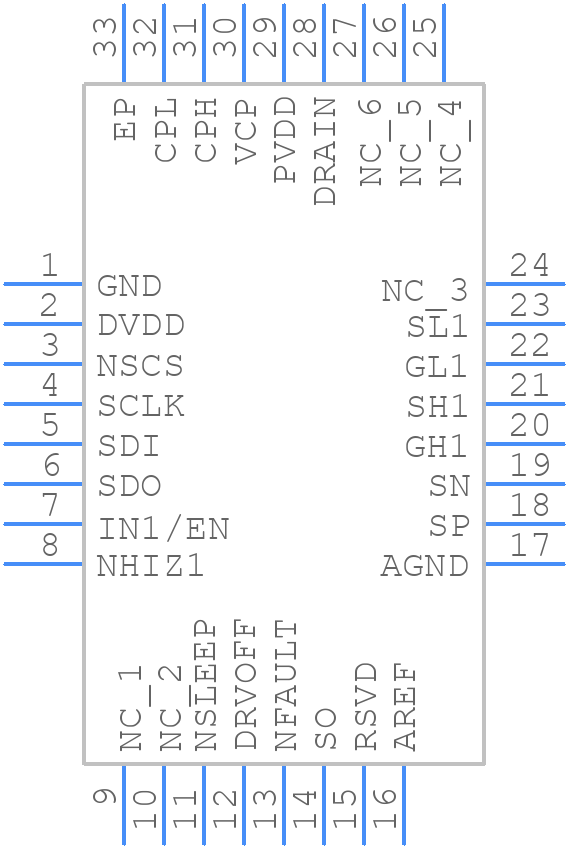

DRV8106SQRHBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8106SQRHBRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032T _2021
click to zoom
3D Models
DRV8106SQRHBRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032T _2021
click to zoom

DRV8106SQRHBRQ1 Details

  • Manufacturer Part Number:

    DRV8106SQRHBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-01-31

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.062 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    37 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    37 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.6 µs

  • Turn-on Time:

    0.85 µs

  • Width:

    5 mm

DRV8106SQRHBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8106SQRHBRQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The sense resistors (Rs) should be chosen based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases the power loss in the resistor. TI recommends using a sense resistor value between 10mΩ and 100mΩ.
  • The DRV8106SQRHBRQ1 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • The DRV8106SQRHBRQ1 is designed for 3-phase brushless DC (BLDC) motors, but it can be used with other motor types or configurations with proper modifications to the control algorithm and hardware. However, this may require additional design and testing to ensure compatibility and optimal performance.
  • TI provides a troubleshooting guide in the DRV8106SQRHBRQ1 datasheet and application notes, which covers common issues and their possible causes. Additionally, the device has built-in protection features and diagnostic pins that can help identify and debug issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8106SQRHBRQ1 Overview

Use the download button to access the DRV8106SQRHBRQ1 schematic symbol, PCB footprint, and 3D model.
