Texas Instruments provides a recommended PCB layout in the DRV8300NPWR evaluation module (EVM) user's guide, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize EMI and thermal issues.
The selection of current sense resistors depends on the motor current, desired current sense accuracy, and PCB layout. A general guideline is to choose a sense resistor with a low tolerance (e.g., 1%) and a power rating that can handle the maximum expected current. TI provides a current sense resistor selection guide in the DRV8300NPWR datasheet and application notes.
The VREG_3V3 pin is a 3.3V regulated output that can be used to power external components, such as sensors or microcontrollers. This pin is internally regulated and can source up to 10mA of current. It's essential to ensure that the total current drawn from this pin does not exceed the recommended limit to avoid affecting the DRV8300NPWR's internal operation.
The DRV8300NPWR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value. TI provides a detailed explanation of the overcurrent protection circuit in the DRV8300NPWR datasheet and application notes.
The recommended startup sequence for the DRV8300NPWR is to first power up the VCC pin, followed by the VREG_3V3 pin, and then the EN pin. This sequence ensures that the internal regulators and circuitry are properly initialized before enabling the device. TI provides a detailed startup sequence in the DRV8300NPWR datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8300NPWR Overview

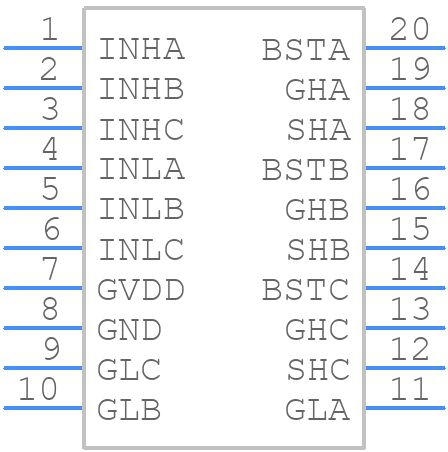

Use the download button to access the DRV8300NPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
