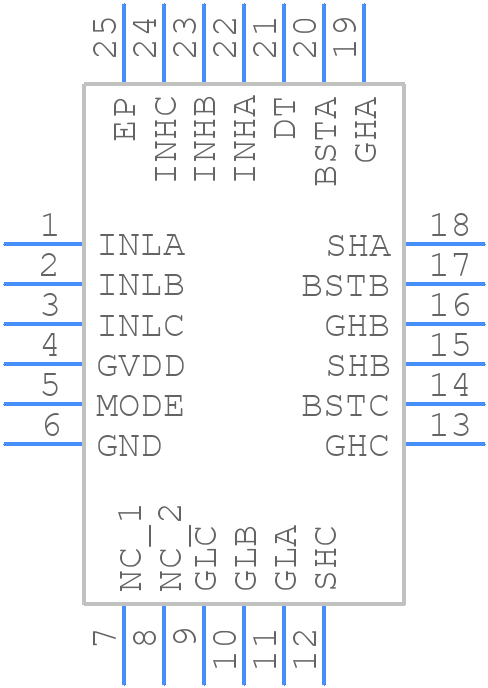

DRV8300NRGER - Texas Instruments

DRV8300NRGER Details

• Manufacturer Part Number:

  DRV8300NRGER

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2020-10-31

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQCC-N24

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  0.75 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  1.4 mA

• Supply Voltage-Max:

  20 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  100 V

• Supply Voltage1-Min:

  5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.03 µs

• Turn-on Time:

  0.03 µs

• Width:

  4 mm
