DRV8304HRHAR - Texas Instruments

Description: 38V Three-Phase Smart Gate Driver With Three Current Shunt Amplifiers

Download DRV8304HRHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

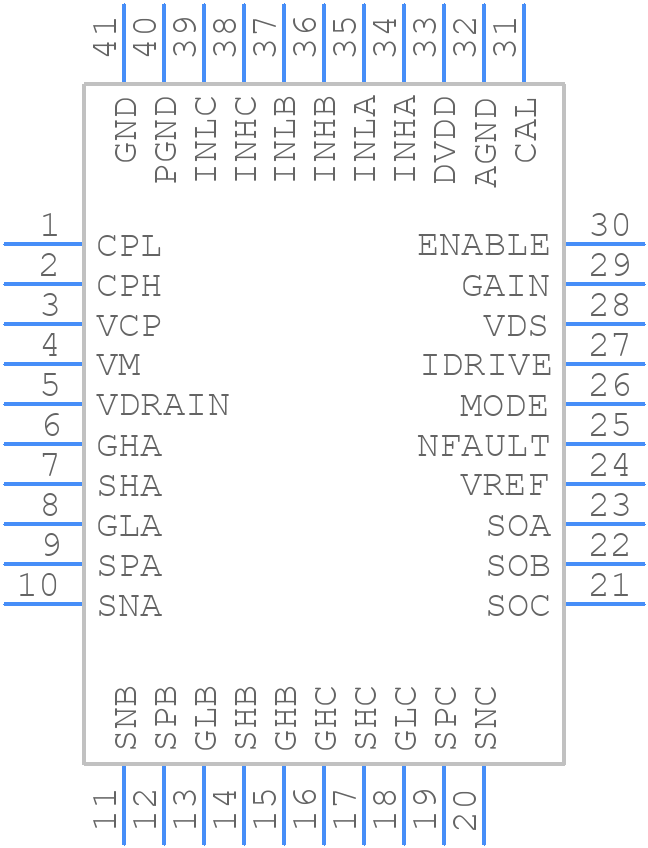

DRV8304HRHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8304HRHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DRV8304HRHAR-1
click to zoom
3D Models
DRV8304HRHAR - Texas Instruments - 3D model - Quad Flat No-Lead - DRV8304HRHAR-1
click to zoom

DRV8304HRHAR Details

  • Manufacturer Part Number:

    DRV8304HRHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Output Peak Current Limit-Nom:

    0.15 A

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage1-Max:

    40 V

  • Supply Voltage1-Min:

    6 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

DRV8304HRHAR Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DRV8304HRHAR is 60V, but it's recommended to operate within 12V to 42V for optimal performance.
  • To configure the DRV8304HRHAR for 3-phase motor control, connect the motor windings to the A, B, and C phase outputs, and use the EN pin to enable or disable the driver. Additionally, use the SPI interface to configure the device for 3-phase operation.
  • The maximum current rating for the DRV8304HRHAR is 30A peak, but it's recommended to operate within 10A to 20A for optimal performance and thermal management.
  • To protect the DRV8304HRHAR from overcurrent and overvoltage conditions, use the built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. Additionally, consider adding external protection components such as fuses, TVS diodes, and resistors to ensure safe operation.
  • Yes, the DRV8304HRHAR is suitable for BLDC motor control applications. It provides the necessary commutation logic and gate drive signals for BLDC motor control.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8304HRHAR Overview

Use the download button to access the DRV8304HRHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
