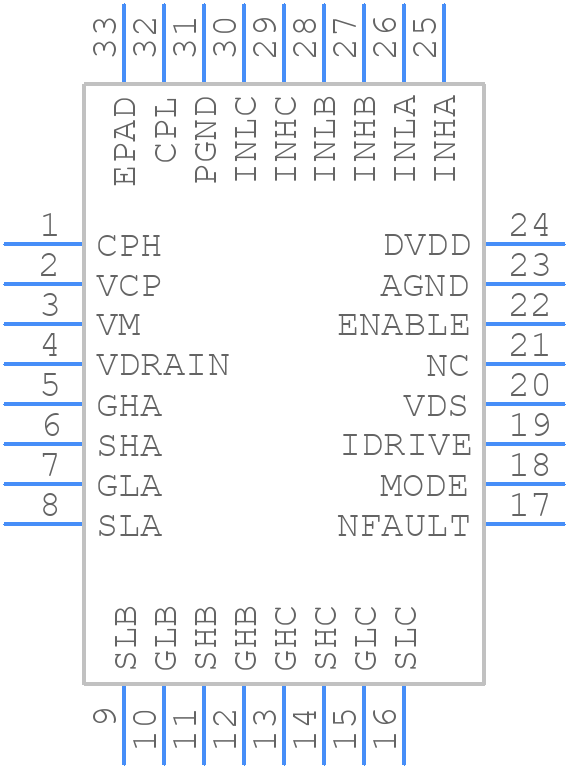

DRV8320HRTVT - Texas Instruments

DRV8320HRTVT Details

• Manufacturer Part Number:

  DRV8320HRTVT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2017-03-25

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQCC-N32

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  1 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  14 mA

• Supply Voltage-Max:

  60 V

• Supply Voltage-Min:

  6 V

• Supply Voltage-Nom:

  8 V

• Supply Voltage1-Max:

  65 V

• Supply Voltage1-Min:

  6 V

• Supply Voltage1-Nom:

  8 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  1000 µs

• Turn-on Time:

  1000 µs

• Width:

  5 mm
