DRV8350FSRTVR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 102-V max 3-phase Functional Safety Quality-Managed smart gate driver 32-WQFN -40 to 125

Download DRV8350FSRTVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

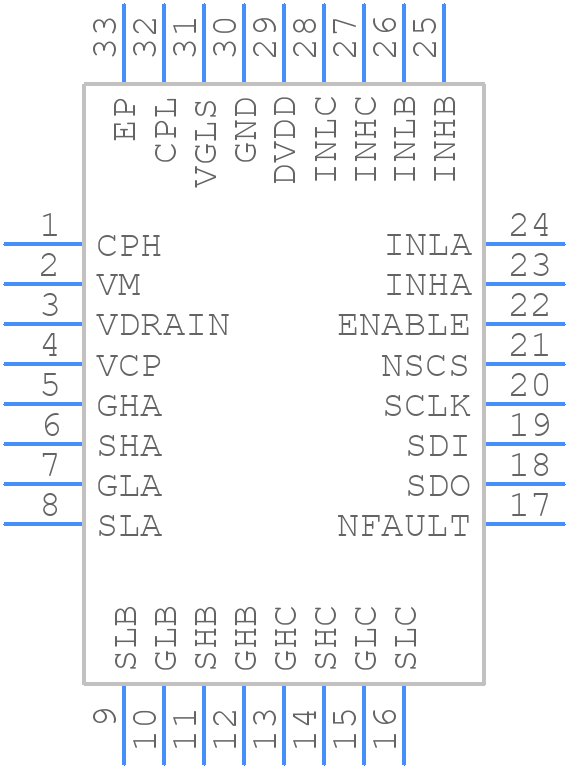

DRV8350FSRTVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8350FSRTVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV0032E
click to zoom
3D Models
DRV8350FSRTVR - Texas Instruments - 3D model - Quad Flat No-Lead - RTV0032E
click to zoom

DRV8350FSRTVR Details

  • Manufacturer Part Number:

    DRV8350FSRTVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-09-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    75 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    48 V

  • Supply Voltage1-Max:

    102 V

  • Supply Voltage1-Min:

    9 V

  • Supply Voltage1-Nom:

    48 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    1000 µs

  • Turn-on Time:

    1000 µs

  • Width:

    5 mm

DRV8350FSRTVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8350FSRTVR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistors should be selected based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases power loss, while a higher value reduces power loss but decreases accuracy. TI provides a sense resistor selection guide in the datasheet.
  • The maximum allowed voltage on the VCC pin is 16.5V, but it's recommended to keep it below 15V to ensure reliable operation and prevent damage to the device.
  • The DRV8350FSRTVR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. TI provides a detailed example in the datasheet.
  • Yes, the DRV8350FSRTVR is designed to work with brushless DC (BLDC) motors. It has a built-in three-phase bridge driver and can operate in trapezoidal or sinusoidal commutation modes. However, additional external circuitry may be required for BLDC motor control.
