DRV8353FHRTAR - Texas Instruments

Description: Triple Half Bridge Motor Driver Automotive 40-Pin WQFN EP T/R

Download DRV8353FHRTAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

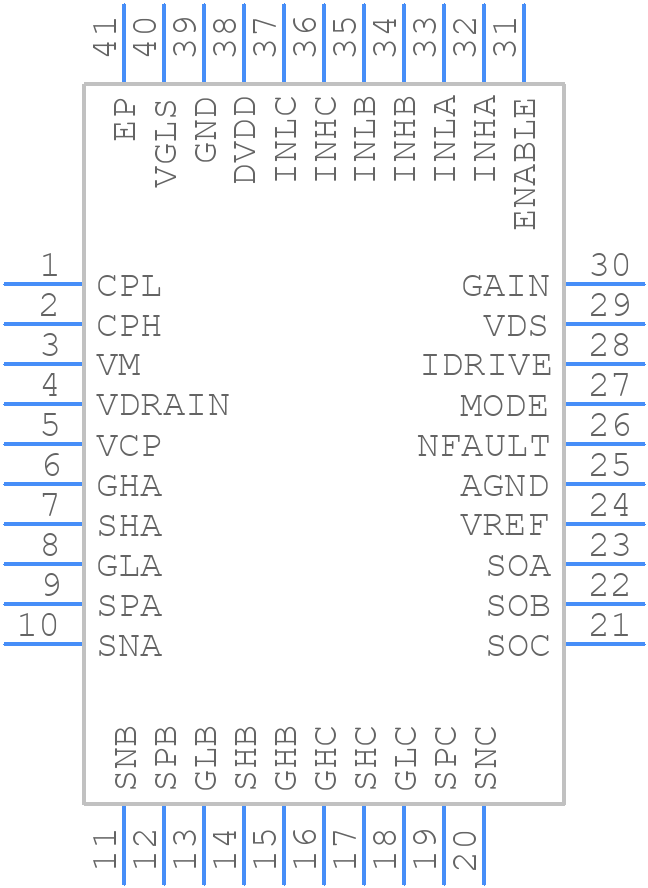

Symbol
DRV8353FHRTAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8353FHRTAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA0040B
click to zoom
3D Models
DRV8353FHRTAR - Texas Instruments - 3D model - Quad Flat No-Lead - RTA0040B
click to zoom

DRV8353FHRTAR Details

  • Manufacturer Part Number:

    DRV8353FHRTAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-09-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    75 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    48 V

  • Supply Voltage1-Max:

    102 V

  • Supply Voltage1-Min:

    9 V

  • Supply Voltage1-Nom:

    48 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    1000 µs

  • Turn-on Time:

    1000 µs

  • Width:

    6 mm

DRV8353FHRTAR Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the bootstrap capacitor is 25V. It's essential to choose a capacitor with a voltage rating that meets or exceeds this value to ensure reliable operation.
  • To optimize the gate drive resistors, choose a value that balances the trade-off between switching speed and power loss. A good starting point is to use resistors in the range of 1-10 ohms. You can then adjust the value based on your specific application requirements.
  • For optimal performance, it's essential to follow good PCB layout practices. Keep the high-current paths short and wide, and use a solid ground plane to reduce EMI. Place the bootstrap capacitor close to the IC, and use a Kelvin connection for the sense resistors. Refer to the TI application note SLVA883 for more detailed guidelines.
  • The DRV8353FHRTAR has built-in overcurrent protection, but you can also add external protection using a fuse or a current sense resistor. Monitor the current sense output (ISENSE) and use a comparator or a microcontroller to detect overcurrent conditions and take appropriate action.
  • The DRV8353FHRTAR is designed to operate at frequencies up to 100 kHz. However, the optimal frequency range depends on your specific application requirements. For most motor control applications, a frequency range of 10-50 kHz is suitable.
