DRV8662RGPT - Texas Instruments

Description: Piezo Haptic Driver with Integrated Boost Converter

Download DRV8662RGPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

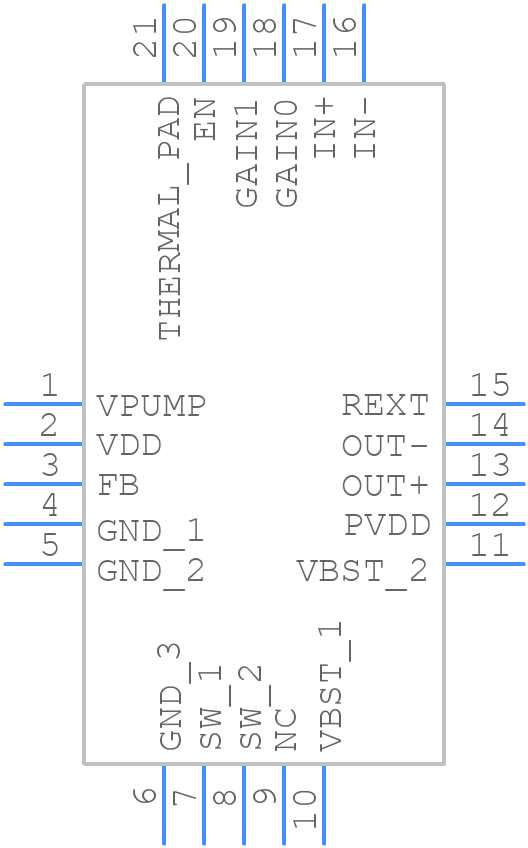

DRV8662RGPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8662RGPT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP (S-PVQFN-N20)_1
click to zoom
3D Models
DRV8662RGPT - Texas Instruments - 3D model - Quad Flat No-Lead - RGP (S-PVQFN-N20)_1
click to zoom

DRV8662RGPT Details

  • Manufacturer Part Number:

    DRV8662RGPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    4

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    100 V

  • Output Voltage-Min:

    40 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Dose:

    V

  • Width:

    4 mm

DRV8662RGPT Frequently Asked Questions (FAQs)

  • The DRV8662RGPT can handle a maximum current of 1.5A per channel, with a total current limit of 3A for both channels.
  • The DRV8662RGPT can be configured for half-bridge or full-bridge operation by setting the BRG pin high or low, respectively. For half-bridge operation, tie the BRG pin to VCC, and for full-bridge operation, tie the BRG pin to GND.
  • The dead-time generator in the DRV8662RGPT is used to prevent shoot-through currents in the output stage. It ensures that the high-side and low-side FETs are not turned on simultaneously, which would cause a short circuit.
  • The output voltage of the DRV8662RGPT can be adjusted by using an external resistor divider network connected to the VREF pin. The output voltage is proportional to the voltage on the VREF pin.
  • The OCP feature in the DRV8662RGPT is used to protect the device from excessive current. When the current exceeds the OCP threshold, the device will shut down to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8662RGPT Overview

Use the download button to access the DRV8662RGPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV86, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
