Texas Instruments provides a recommended PCB layout in the DRV8714HQRHARQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, trace routing, and thermal management to minimize EMI and thermal issues.
The DRV8714HQRHARQ1 has a flexible architecture that can be configured for different motor types and applications using the SPI interface. Texas Instruments provides a software development kit (SDK) and application notes that provide guidance on configuring the device for specific use cases.
The DRV8714HQRHARQ1 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the DRV8714HQRHARQ1 datasheet and application notes, which includes steps to identify and resolve common issues. Additionally, the device has built-in diagnostic features, such as fault flags and status registers, that can help engineers debug and troubleshoot issues.
While the DRV8714HQRHARQ1 is designed to operate within specific voltage and motor type ranges, it's possible to use it with different voltage supplies or motor types with proper design and testing. However, this may require custom configuration, additional components, and thorough testing to ensure reliable operation and prevent damage to the device or motor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8714HQRHARQ1 Overview

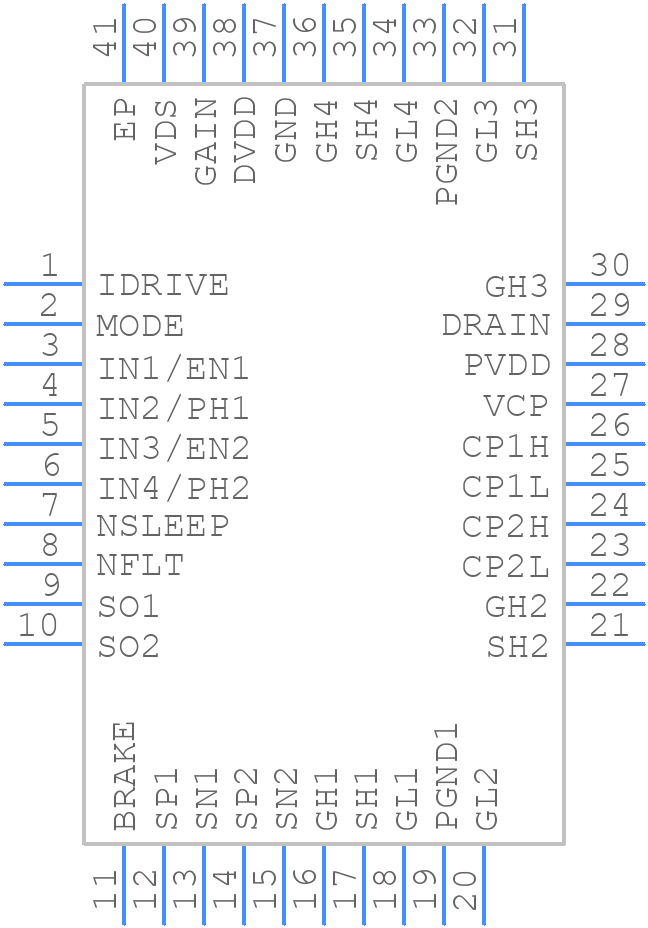

Use the download button to access the DRV8714HQRHARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV87,
or try a keyword search, such as MOSFET Drivers
