Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception, and follow best practices for signal routing, termination, and shielding. Additionally, use a low-jitter clock source and ensure that the signal traces are well-matched and impedance-controlled.
The maximum cable length supported by the DS100BR410SQX/NOPB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends keeping the cable length as short as possible, but up to 10 meters is typically supported. However, it's recommended to consult with a Texas Instruments application engineer for specific guidance.
To troubleshoot issues with the DS100BR410SQX/NOPB, start by reviewing the datasheet and application notes, and then use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check for signal integrity issues, clock jitter, and power supply noise. Consult with a Texas Instruments application engineer if the issue persists.
The DS100BR410SQX/NOPB has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device is expected to operate in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS100BR410SQX/NOPB Overview

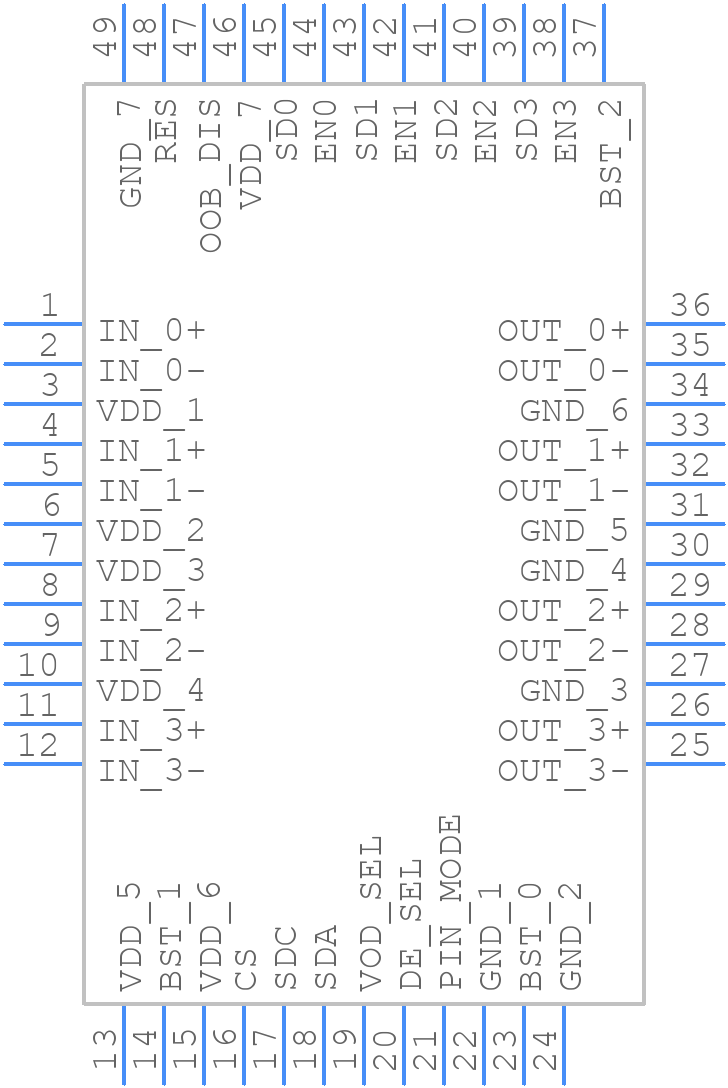

Use the download button to access the DS100BR410SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS100,
or try a keyword search, such as Digital Transmission Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
